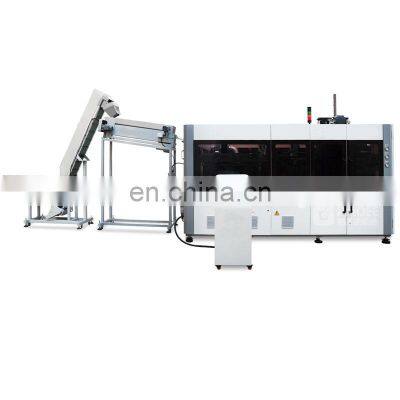

Full automatic servo driven motor high speed plastic blowing moulding equipment blow molding machine price

Product Description

Product Description
Full automatic 5 cavity full servo driven high speed pet blow molding machine price Product DescriptionFour servo motor system:1.Stretching is driven by servo motor 2. Mold's opening & closing is driven by servo motor 3. Slideway rotation in oven is driven by servo motor 4. Preform feeding is driven by servo motor Machine description:1.Use continuous rotating feeding system, and the feeding system has multiple safety protection devices to ensure high speed preform supply.2.Adopt the horizontal device without turning over the bottle preform, which has the advantages of simple structure, convenient maintenance and effectively reduce the cost of replacement parts.3.Small heating distance between preform, effective use of lamp heating space, improve preform heating efficiency and energy saving effect.The water channel of the heating box runs through directly, install cold air system to ensure that the screw of the preform does not deform.5. Optimize heating tunnel take out wind and the surface cooling of the preform. The reversible heating box is convenient to replace the heating lamp.6.Clamping machine adopts cam gearing, chain - free plate pin shaft, small volume, long service life.7.The moving is driven by servo motor to ensure high speed operation and accurate positioning.8.Blowing and stretching adopts servo motor drive and bottom die linkage structure. Equipped with high speed precision blowing valve set, achieve high production requirements.9.Air inlet, pre-blowing, blowing pipe use hard pipe, air source is more cleaner, no pollution.10.Take preform and bottle adopt the hard claw, then more stable, never wear, long service life.11.The blowing mould is equipped with a slide, which is convenient to change the mould.12. The perform unscrambler can be positioned in multiple directions and can be selected flexibly according to actual situation.13.Human-machine interface control system, using 9 inch screen to complete and simple operation.14.The machine design is compact and small volume, which effectively reduces the floor space. Main machine :Servo systemServo system optionClamping Servo with SEIMENS brand Transfer Preforms Servo Stretching Servo Feeding Performs Servo Detailed ImagesDetailed Images of Each part1. The bottle prefroms feeding system has multiple safety protection device.2. The heating bottle preform holder adopts 38.1 bar distance, which can save more than 50% energy than the conventional one.3. High-speed precision blowing valve combination to achieve high production requirements, long service life. 4. Adopt servo motor to stretch accurately and adjust conveniently. 5. Mold clamping structure adopts cam linkage, chainless plate pin shaft is small in volume long service life.6. PLC servo motor driven by SEIMENS products, lamp control, adopt intelligent regulator, and equipped with phase loss protection and pressure detection system. Main technical parameter:SpecificationsItemUnitGD-TP5Bottle sizecavitiesPCS5Max.bottle volumeL1.5Max.bottle neck outer diametermm30Max.bottle outer diametermm95Max.bottle heightmm350CapacityB.P.H7000-7500Heating distancemm38.1Bottle distancemm105PowerHeating powerkw40Servo motor powerkw9.75Other motor powerkw4.2Rated total powerkw54Use powerkw18-20VoltageV/Hz380V±10% 50HzAir compressorOperating pressureBar7Low pressure air consumptionL/Min1000Blowing pressureBar35High pressure air consumptionL/Min4000Mold cooling waterOperating pressureBar3-5Temperature℃10-12FlowL/Min50Rated powerHp5Heating cooling waterOperating pressureBar3-5Temperature℃15-20FlowL/Min50Rated powerHP5Machine dimensionSize(L*W*H)M4*1.3*2.6WEIGHTkg4300Note1. The theoretical output is based on the 500ml water bottle, and the final production capacity is based on the perform, bottle type and volume depend.2. The high pressure gas consumption is based on the capacity of 500ml water bottle, and the final production capacity is based on the perform, bottle type and volume depend.ConfigurationAutomatic blowing machine configurationItem Name of main spare partsBrand name1Touch Screen 2Computer PLC controller3Servo motor4Frequency Converters5Magnetic Valve6One-way valve7Muffler8Voltage regulator9Monolithic breaker 10Single Separator 11 Double Separator 12Air Cylinder Company information Workshop detail Our team Why choose Grandee Machinery?
