Hot Sale Sheet Metal Fiber Laser Cutting Machine Factory Price

Product Description

Hot Sale Sheet Metal Fiber Laser Cutting Machine Factory Price
Fiber laser generator is a developed technology, which expert laser beam of high density energy and focus on the surface of work piece, to make instant melting and vaporing of the area lighted by the superfine focus spot, then the automatic laser cutting can be realized when moving the light spot position by CNC mechanical system.
1.Machine structure:600ºC heat treatment, 24 hours cooling in the oven, 8 meters gantry milling,to make sure 20 years usage without deformation.

2.Speed:Adopting imported high-speed transmission system, the fiber laser machine reaching 20m/min cutting speed and 0.5G accelerated speed in China.

3.Configurations:
(1).500W fiber laser generator from Germany IPG.
(2).AC servo Motor from Japan Panasonic.
(3).High precise pinion and rack,double-drive transmitting system and linear guide rail from HIWIN.
(4).Laser head from Germany Precitec.
(5).Lens from USA II-IV
(6).Professional operation system.
4.Consumable parts:
(1).Protection Lens.
(2).Nozzle.

5.Applicable Industry:
It's widely used in various industries, such as metal forming, aviation, aerospace, electronics, appliance, subway spare parts, automobile, grain machinery, textile machinery, engineering machinery, high precision accessories, vessel, metallurgy, elevator, arts and crafts, tool processing, decoration, advertising, metal processing service etc.

6.Applicable Materials
It is contact-free cutting for metal plates and tubes, especially appropriate for processing on stainless steel and iron plate, diamond saw blades, works perfectly with high hard and brittle alloy. In metal forming industry, the laser cutting can some way replace CNC punching and wire cutting. It's mainly used for laser cutting on metal plate and tube, e.g., stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized plate, pickle plate, galvalume plate, copper, silver, gold and titanium etc.

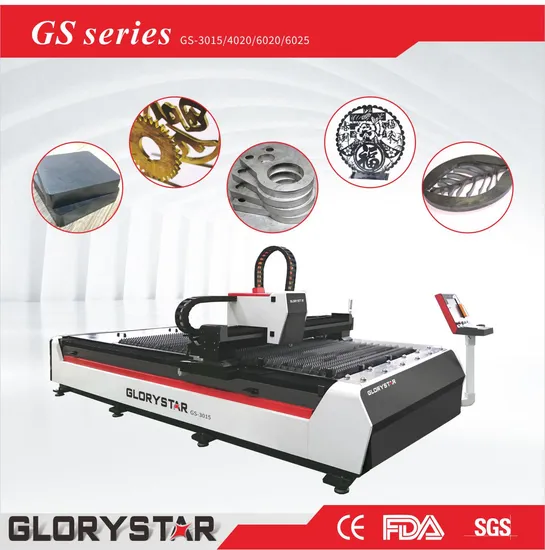

GS is the most popular mode of fiber laser cutting machine. more than 2000sets of GS fiber laser cutting machines are working in the market. GS enjoys high reputation in the market by its high quality and price ration as well as high stability and efficiency. GS enjoy the honour of well-known product in China as well some overseas market. Now we have GS third generation to appreciate the customers.
Technical parameters

Model	GS-3015	GS-4015	GS-4020	GS-6015	GS-6020
Laser Power (W)	1000-3000 (Optional)	1000-3000 (Optional)	1000-3000 (Optional)	1000-3000 (Optional)	1000-3000 (Optional)
Working Area (MM)	3000*1500	4000*1500	4000*2000	6000*1500	6000*2000
Total Power Consumption (KW)	12<30	12<30	12<30	12<30	12<30
Dimensions (MM)	4800*2300*2000	6000*2700*2000	6000*3200*2000	8100*2300*2000	8300*3200*2000
Weight (T)	5	5.5	6	7.2	8

Service&Supports
1- Fast response to customer's request .
2- One year warranty , lifetime service, and supply parts at low price .
3- Supply the necessary video for assisting customer to intall and utilize the machine, on line assistant.
4- We are able to train the technicians & operators in Glory Laser or in customers' places .
