Pneumatic Polyurethane Spray Foam Injection Machine Equipment Fd-411b

Product Description

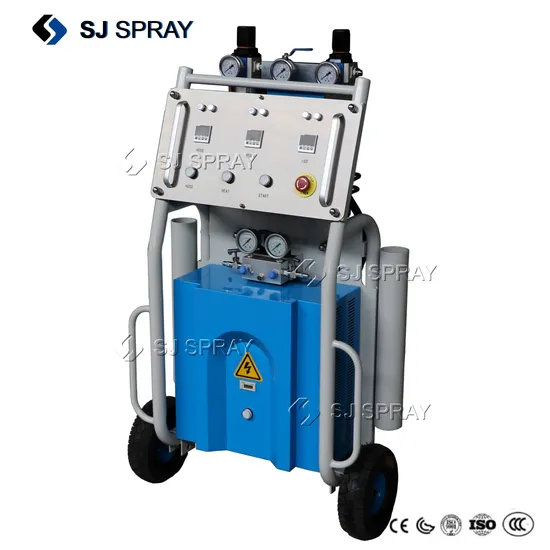

Polyurethane spray/injection foaming machine FD-411B

High-end original independent design for 15 years, imported originals refused to low-end, product quality is stable, the leader of polyurethane spraying machine.
The FD-411B pneumatic driven proportioning unit is of advanced and compact design.It is specially aimed at the applications of polyurethane foam in place.Its particular configuration facilities easy access to all its components, simplifies the control functions and significantly reduces the maintenance work.
Heating System
The heating system consists of two separate independent block heaters,Independent rapid heating to target temperature.
Proportioning Pumps
The system is including two positive displacement piston pumps, driven by a pneumatic motor.
Hose Heating System
The hose heating system is designed with 1000W each 15 meters that allows the heating of up to 90m.
Recirculation System
Recirculation of the two components allows a faster achievement of preset temperatures at the heaters before starting to spray and during temporary shutdowns. Product Description
1.Enlarge the cylinder for more uniform spraying and mixing.
2.Electronic components and seals are all imported brands, which are stable and not easy to break after long-term use.Refuse to reduce low-end distribution, only make high-end products.
3.The heated hoses has voltage protection to ensure the safety of electricity use.
4.Spray gun, heated hose can be used with G/R/A/C/O.
5Maintains temperature setpoints for better yield.
6.Maintains consistent output pressure for uniform spray pattern.
7.Ease of Use,Easy to operate and maintain.
8.Resettable counter tracks material usage.
9.Three independent heat zones - ISO, resin and hose heat.
10.Digital temperature controls,Provide accurate heat control for reliable spraying to handle different chemical viscosities.


Product Parameters

Project	FD-411B
Data ratio of raw materials	1: 1 (fixed)
Raw material viscosity range	200-1000CPS (at working temperature)
Working pressure	17MPa (170 bar)
Maximum Fluid Temperature	88 ° C (190 ° F)
0utput	2-15kg/min
Gun Type	Spray/Injecting
Total power	11000W
Voltage	110V/230V 1-ph / 3-phs 380V/400V 3-ph
Machine size	870mm * 700mm * 1150mm
Gross weight	250KGS
Net weight	200KGS

Standard configurations
1.Slef-cleaning spray gun 1 unit 2. Transfer pump 2 unit 3.Heated hoses 15 meters
Packaging & Shipping
Export fumigation-free wooden box packaging, sea and air transport more robust and reliable.


Exhibition
For more than ten years since its establishment, it has participated in dozens of foreign exhibitions and has very stable partners all over the world.
Certifications
CE certification, rich export experience
