CNC Vertical Machining Center Smtcl Affordable Alternatives Milling Machining Center Vmc855 for Metal Processing

Product Description

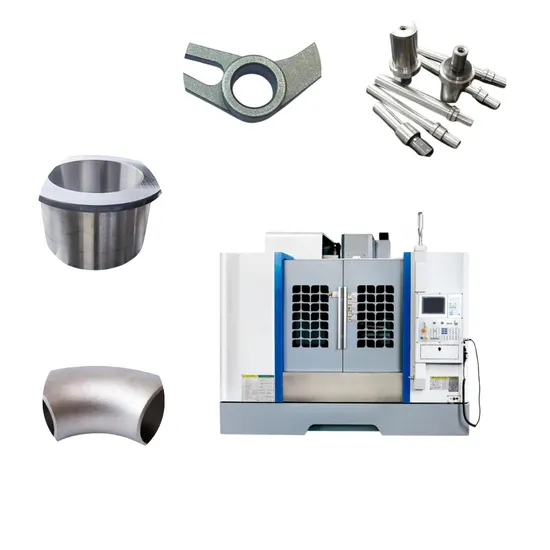

Vertical Machining Center VMC855
Vertical machining center, mainly used in medium-sized parts and molds processing.The workpiece in a fixture may be for the completion of milling, drilling, boring, reaming and other processes of processing, it can be single used and can also be used for multiple operations on parts in a production line Cutting with powerful, high-speed positioning mechanical and electrical intearation, automatic chip control and security protection features.
Specifications:

Model No.	VMC855
Specifications
Table size	1000 x550 mm
X Travel	800 mm
Y Travel	550 mm
Z Travel	550 mm
Worktable loading capacity	600 kg
T-Slot	5-18-90 mm
Distance from spindle nose to worktable surface	120-670 mm
Distance from spindle center to column guide surface	550 mm
SPINDLE
Spindle taper	BT40/Ø150
Spindle speed	8000 rpm
Spindle motor power	7.5 kw
Drive manner of spindle	Belt drive
FEEDING
X/Y/Z axis rapid shift	36/36/24 m/min
CNC System	KND2000
Maxomun Cutting feed speed	1-10000 mm/min
ACCURACY
Position accuracy	0.008 mm
Repeatability accuracy	0.005 mm
Machine specifications
Machine weight	5800 kg
Overall dimensions (L*W*H)	2750*2300*2600mm
Air pressure
Air source	≥6 kg/cm²
Air pressure fiux	≥0.3 m³/min
Automatic tool changing system
Standard tool quantity	24 handle
Tool max.dia./length	Ø78/300
Tool exchange mode
Average tool exchange time (sce)	Bucket 7s/disc 2.5s
slideway type	Hard rail

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
