High Precision 60mm Helical Gear Planetary Gearbox for 400W Servo Motor
Basic Info.
Model NO.
HXF60-5V1
Layout
Coaxial
Hardness
Hardened Tooth Surface
Installation
Vertical Type
Step
Single-Step
Type
Planetary Gear Box
Gear Ratio
5:1
Nominal Output Torque
44nm
Efficiency
97%
Backlash Gap
<=5 Arcmin
Nominal Input Speed
3000rpm
Max Input Speed
6000rpm
Max Radial Load
1530n
Max Axial Load
630n
Waterproof Rating
IP65
Noise
<=55dB
Lifetime
20000 Hours
Ambient Temperature
-20c...150c
Transport Package
Carton
Specification
90mm
Trademark
DELIXI
Origin
China
HS Code
8483402000
Production Capacity
50000PCS/Month
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 20.00cm
Package Gross Weight
1.000kg
Product Description

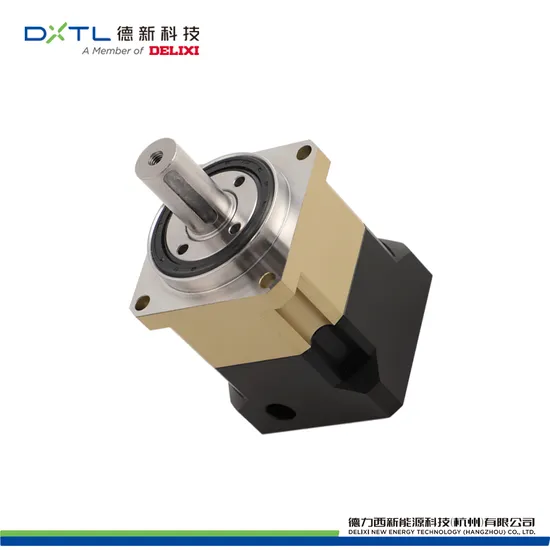

Product DescriptionHigh Precision 60mm Helical Gear Planetary Gearbox for 400W Servo Motor
HXF series is a type of helical planetary gearbox offers a gear ratio of 5~100 with a backlash of 5arcmin. It adapt to 400W servo motors with a size of 60mm and a shaft diameter of 14mm, and NEMA 23/24 Stepper motor. This gearbox is designed for harsh environments with a high protection rating of IP65 and features helical gearing for smooth, quiet operation with high torque and accuracy. In addition, the design offers high load capacity for demanding applications like automated production lines, packaging machines, textile machines, etc. Product Parameters
| HXF60 Series Helical Gear Planetary Gearbox | |||||||||||||||||
| Stage | L1 | L2 | |||||||||||||||
| Body Length | mm | 72.5 | 101.5 | ||||||||||||||
| Ratio | / | 3 | 4 | 5 | 7 | 10 | 12 | 16 | 20 | 25 | 28 | 30 | 35 | 40 | 50 | 70 | 100 |
| Nominal Output Torque | Nm | 35 | 45 | 44 | 40 | 22 | 40 | 40 | 45 | 45 | 45 | 35 | 45 | 45 | 45 | 40 | 22 |
| Moment Permissible Torque | Nm | 2 times nominal output torque | |||||||||||||||
| Rated Input Speed | RPM | 3000 | |||||||||||||||
| Max Input Speed | RPM | 6000 | |||||||||||||||
| Max Radial Load | N | 1530 | |||||||||||||||
| Max Axial Load | N | 630 | |||||||||||||||
| Efficiency | % | 97 | 94 | ||||||||||||||
| Backlash | arcmin | ≤5 | ≤7 | ||||||||||||||
| Protection Class | / | IP65 | |||||||||||||||
| Average Life Span | h | 20000 | |||||||||||||||
| Operating Temperature | °C | -20...+150 | |||||||||||||||
| Lubrication | / | Permanent lubrication | |||||||||||||||
| Noise | dB | ≤55 | |||||||||||||||
| Weight | kg | 1.1 | 1.4 | ||||||||||||||
