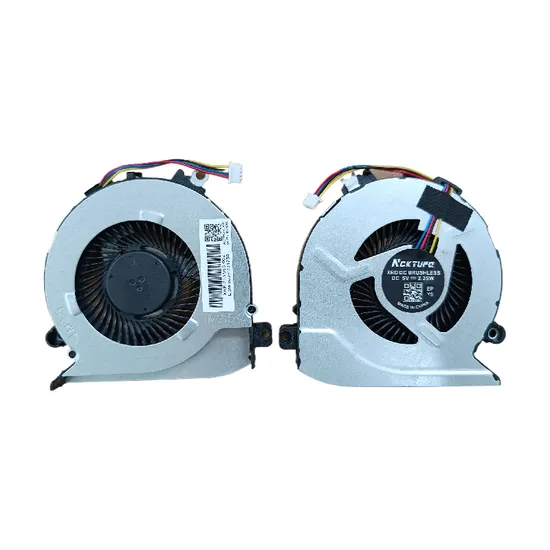

Fan for Pavilion 14-Ab 14t-Ab 15-Ab 15t-Ab 15z-a 17-G Envy 15-Ae 15t-Ae 15-Ah 15z-Ah M6-Ae M6-P M6-T Envy 17-N M7-N

Product Description

Product Parameters

Type	brand	Buy PN	Label PN	Label PN	Label PN	Label PN	Models
Fan	HP	812109-001	812111-001	816119-001	806747-001	0FGBW0000H	Pavilion 14-AB 14T-AB 15-AB 15T-AB 15Z-A 17-G
Fan	HP	812682-001	818735-001	818401-001	DC28000G7F0	DC28000G7S0	Envy 15-AE 15T-AE 15-AH 15Z-AH M6-AE M6-P M6-T
Fan	HP	813798-001	DC280000G4F0	DC280000G4S0	MF75120V1-C270-S9A	DFS661605PQ0T-FGDU	Envy 17-N M7-N
Fan	HP	813946-001*	813947-001	DC28000GAD0	DC28000GAF0	DC28000GAR0	15-AC 15-AF 15-AY ProBook 250 G4 255 G4 250G4 255G4

Detailed Photos



Application industry
Axial fans are used for stable cooling in many different applications and locations. If the temperature of a device increases, the lives of its internal parts will be reduced and malfunctions could result. Particularly devices and parts that generate heat are greatly affected by heat. Device internal cooling and fan selection are extremely important to long-term usage of the parts inside devices.
Remarks

Packaging Details Carton Case or according to your demands
Port Shenzhen/hongkong
Lead time About 1 weeks after payment confirmed or according to order quantity
After sales service Warranty is 12 months from shipping date
Certifications


Tips
1. When the cooling fan is running, sometimes there is a "da da" collision sound, and sometimes there is no sound.
The reason may be that the dense and messy data cables and power cables in the cooling fan have touched the fan blades of the fan, causing the cooling fan to make abnormal noises when it rotates.
Solution: Use rubber bands, adhesive tape, etc. to bundle the data and power cables inside the half fan, and avoid passing over the cooling fan.
2. The cooling fan was used normally in the early stage, but recently it was suddenly found that the fan automatically moved to a fixed position.
The reason may be that the fastener of the radiator fails, and the fan is displaced due to the resonance phenomenon caused by the rotation of the fan.
Solution: Replace with a new buckle.
3. The cooling fan suddenly makes a loud noise when it is in use, even louder than the sound made by the chassis power supply.
The reason may be that too much dust has accumulated on the surface of the cooling fan and the gaps in the radiator, and the motor lubricating oil of the fan has completely dried up, which causes a motor-like roar.
Solution: We can wipe the cooling fan with soft paper, and use a medical swab to wipe the gaps, then open the plastic sticker off the fan, and drop one to two drops of ordinary sewing machine oil into the movement.
4. If the cooling fan is used for less than a week, there will be excessive noise and poor rotation, but it will return to normal after a period of time.
The reason may be that the indoor temperature where the cooling fan is located is low, which causes the lubricating oil on the rotating bearing to fail.
Solution: Add antifreeze lubricating oil to the cooling fan, pay attention to the temperature of the use environment, and pay attention to its maintenance.
