high precision paper and aluminium/copper foil slitter rewinder

Product Description

Product Description

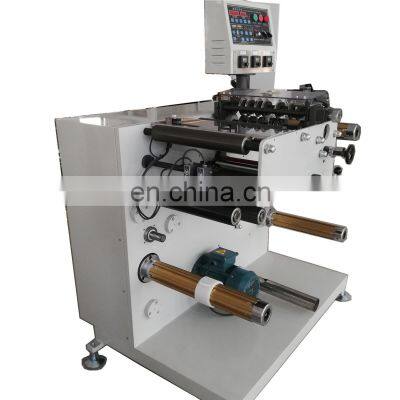

Narrow width simple adhesive tape slitting machine Purpose:This mahcine is applicable for the vertical slitting of various rolling shape materials such as industrial adhesive tape, sheet, aluminum foil, copper foil, compound plastic sheet etc. Functional characteristics:The machine is applicable to slit the narrow scope paper. It can automatically meter and count, set length, stop and alarm, while the feeding is controlled through auto rectifiler. So it is characterized by quickness, accurate slitting and ease of operation. Main Technical Parameters: ModelDP-320Cutting Speed ( m/min )80Max Web Width ( mm )320Max Feeding Diameter ( mm )500Max Winding Diameter ( mm )480Minimum slit width(mm)18Max silit width(mm)310Cutting Precision ( mm )±0.30Voltage and Power220v 0.55kwTotal Power ( kw )0.75Overall Dimensions ( mm )1300*900*1200Machine Weight ( kg )250 configration list unwinder shaft3" air shaft 1pcs rewinder shaft 3" air shaft 2pcs convey roller Aluminum chromedPU rubber roller round slitter up and down 8 setsservo motor protect cover operation board photoelectric eye 2pcs for rectification
