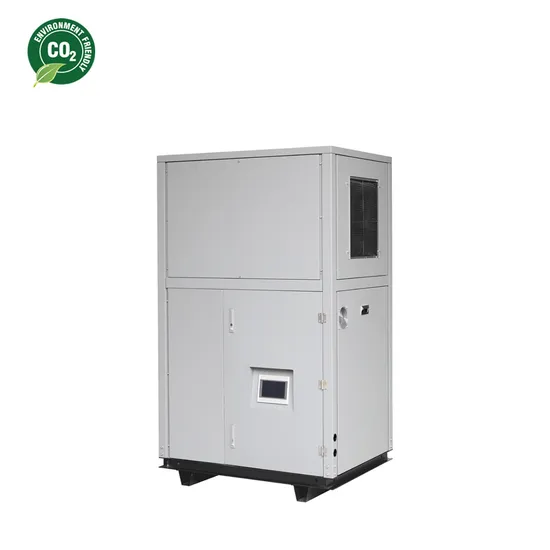

Energy Saving Air Heater for High Temperature Drying

Product Description

Features of CO2(R744) Heat Pump:
The water can be heat up to 120ºC, high temperature output can reduce the volume of the storage tank and suitable for some specific usage (disinfection, cleaning) Suitable for low ambient. Even in -43ºC, it can efficiently offer heat Max COP is 5.5, our multi function model can reach max COP 7 (provide free cooling when producing heat) Inverter control to offer various power accordingly to real requirement, save energy Modules design, can reach higher Power by combined installation 6 layers of pressure protection Intelligent inverter control , can save 50% energy during defrosting Smart wireless control, also RS485/Modbus central control Programmable digital interface with touch keys Monobloc design, no need extra work for high pressure refrigerant connection The advantages of CO2 as a refrigerant
Climate-neutral environmentally friendly refrigerant R744 (CO2) Without environmentally hazardous decomposition products No additional contribution to the greenhouse effect (GWP = 1) Does not contribute to the ozone depletion (ODP = 0) No disposal and recycling requirements No availability constraints Low security requirements - Safety Group A1 Non-toxic, non-flammable, thermally stable, compatible with other materials

Bitmap Model		LYDS	40ZF	75ZF	120ZF	160ZF	250ZF
Low temperature condition	Heating Capacity	kW	31	51	78	130	205
	Power Consumption	KW	9.2	14.9	23	38	61
	COP	W/W	3.36	3.42	3.39	3.42	3.36
	Air Flow	m³/h	3100	5120	7750	12900	20300
	Cooling Capacity	kW	21.8	36.1	55	92	144
	EER	W/W	2.36	2.42	2.39	2.42	2.36
	Cool water flow	m³/h	3.8	6.2	9.5	16	25
High temperature condition	Heating Capacity	kW	25	42	61	110	155
	Power Consumption	KW	11.2	20	28	46	69
	COP	W/W	2.23	2.1	2.17	2.39	2.24
	Air Flow	m³/h	830	1060	2020	3650	5120
	Cooling Capacity	kW	13.8	21	33	64	86
	EER	W/W	1.23	1.04	1.17	1.39	1.24
	Cool water flow	m³/h	2.4	3.6	5.7	11	14.8
Power supply	V/Ph/Hz		3phase 380V/50Hz/60Hz
Heating type			Instant
Output Air temperature		ºC	60~120
Input Air temperature			0~80
Water source inlet temperature		ºC	5~30ºC
Water source outlet temperature		ºC	7~35ºC
Compressor	Type		Semi-Piston
Circulation water pump	Brand		Wilo
Hot Air Pressure		Pa	160
Hot Air Blower		Type	EC Fan
Hot Air Heat exchanger		Type	Copper and Aluminum Coil
Water Source connection		mm	DN32	DN40	DN50	DN65	DN80
Water Source Heat exchanger		Type	SST316L PHE
Refrigerant	R744/ KG		7	10	15	22	30
Controller	Brand		Carel
Dimensions	Length	mm	1200	1200	1600	2000	2500
	Width	mm	900	1200	1200	1200	1200
	Height	mm	1886	1886	1886	1886	1886
Unit noise level		dB(A)	60	65	70	72	75
Net weight		kg	650	800	1200	1800	2100
Inverter			VFD control
Note:
1.Working condition:
Low temperature condition: hot air inlet 30ºC,outlet 60ºC, water source inlet 12ºC outlet 7ºC
High temperature condition: hot air inlet 30ºC,outlet 120ºC, water source inlet 12ºC outlet 7ºC
