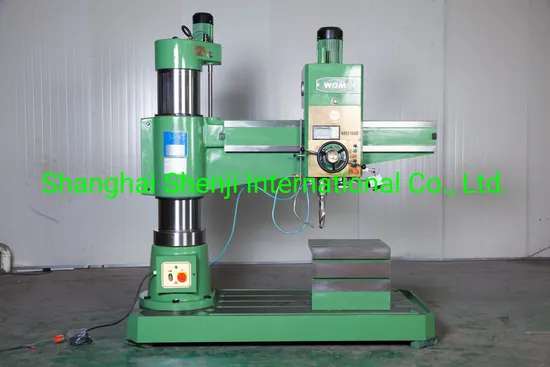

Z3063X20A Deep Hole Drilling Machine Radial Arm Drilling Machine
| US$2,950.00-8,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
Z3063x20A
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
1
Hole Diameter
50-100mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE
Condition
New
Transport Package
Wooden Case
Trademark
SJMC
Origin
China
Production Capacity
50units/Month
Product Description
Deep Hole Drilling Machine Radial Arm Drilling Machine Z3063x20A Deep hole drilling machine radial arm drilling machine Z3063x20A suitable for drilling,expanding,boring,reaming hole, scrape plane,tapping and threading.Apply to various machine manufacturing industries in process medium or small element, also apply to repair workshop .
Z3063X20A Radial Drilling Machine Price is one of the large multi-purpose equipment, the machine is high efficiency, tight tolerance is small. Used for drilling, expansion, reaming, grooves, tapping intermediate and large parts, and even drilling, if equipped with the necessary equipment.
| Model | Z3063x20A |
| Max. Drilling capacity(mm) | 63 |
| Distance spindle axis to column generating line | 500-1600 |
| Distance between spindle axis and column surface(mm) | 400-2000 |
| Spindle taper | MT5 |
| Spindle travel | 400 |
| Spindle speeds range(mm) | 20-1600 |
| Spindle speeds series | 16 |
| Range of Spindle feeds (r/min) | 0.04-3.2 |
| Rocker rotary angle (degree) | 360 |
| Motor power (kw) | 5.5 |
| Movements motor power (kw) | 1.5 |
| Weight (Kg) | 7000 |
| Packing dimension(cm) | 3000x1250x3300 |
Packing & Delivery
Z3063X20A Radial Drilling Machine Price using standard export packaging, to ensure the safety of transport machinery .
