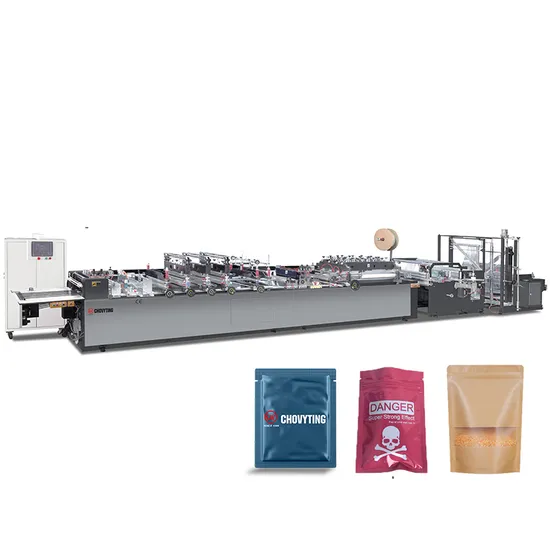

Laminated Stand up Pouch with Zipper Lock Bag Pouch Making Machine
Basic Info.
Model NO.
cw-400b
Seals Mode
Three Side Sealing
Speed
High
Continuous-Rolled
No
Sealing & Cutting
Heat-Sealing Cold-Cutting
Layer
Double
Machine Type
Bag Forming Machine
Computerized
Computerized
Type
Plastic Bag Making Machine
Servo Motoor
Yaskawa
Photocell
Sick
Air Cylinder
Shako
HMI
Weinview
Transport Package
Wooden Box
Specification
CE, ISO2001
Trademark
chovyting
Origin
Zhejiang Ruian
HS Code
84778000
Production Capacity
100
Packaging & Delivery
Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
3000.000kg
Product Description
CWZD-600C+FD heavy duty multi-function laminated bag making machine + single sheet film folding stand up pouchBrief introduction:
New design for producing laminated bag (single sheet folded stand up pouch and zipper bag),also can produce pet food bag popular in America and other countries.
FEATURE: Folding, punch,bottom gusset and sealing automatic design Newly design feeding structure, high speed feeding no shake Special design bottom gusset device, easily to operate Double layers unwinding design, suitable for multi-function laminated bag Newly design zipper and stand up device Optional:
1. Air cylinder automatic loading device
2. Hangle hole puncher
Technical parameter:
| Type | CWZD-400C+FD | CWZD-500C+FD | CWZD-600C+FD |
| Unwinder width | 800mm | 1000mm | 1200mm |
| Bag making length | 70-380mm×6(N≤6) | 70-380mm×6(N≤6) | 70-380mm×6(N≤6) |
| Bag making width | 70-380mm | 70-480mm | 70-580mm |
| Bag making speed | 40-150pcs/min | 40-150pcs/min | 40-150pcs/min |
| Line speed | 35m/min | 35m/min | 30m/min |
| Total power | 38KW | 43KW | 48KW |
| Machine weight | 3900kg | 4100kg | 4400kg |
| Machine dimension | 12300X1750X1800mm | 12300X1950X1900mm | 12300X2050X2000mm |
