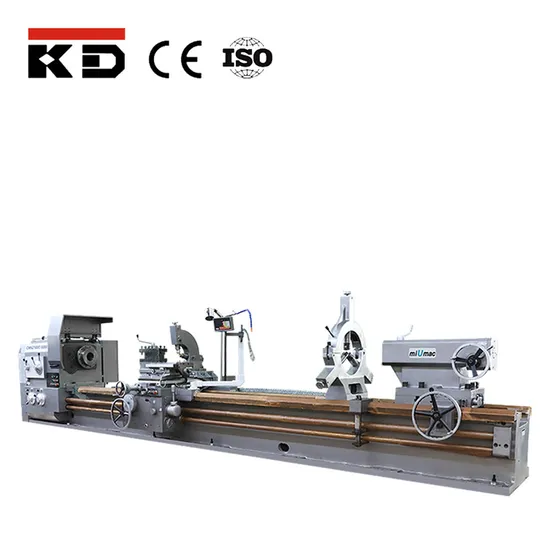

Large Sized Big Bore Conventional Lathe Cw62100c/12000
| US$3,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
Cw62100C/12000
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Normal Precision
Certification
CE, ISO 9001
Bed Width
755mm
Spindle Bore
130mm
Spindle Nose
A2-15
Main Motor
22kw
Number of Speed
24(Normal)/12(Reverse)
Speed Range
2.5-250r/Min
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458190000
Production Capacity
5 Sets/ Month
Product Description
Product Features
1. Precision ground and hardened bed ways, long life and low noise.
2. The spindle is supported with precision roller bearings. The spindle system is high in rigidity and accuracy.
3. Rapid feed structure is available on apron.
4. Clutch in headstock makes the lathe start smoothly and brake quickly.
PRODUCT SPECIFICATIONS
| MODELS | CW61100C | CW61125C | CW61140C | |
| CAPACITY | | | | |
| Max. swing over bed | Ф1000mm | Ф1250mm | Ф1400mm | |
| Max. swing over carriage | Ф600mm | Ф865mm | Ф1015mm | |
| Max. swing over gap* | Ф1380mm | Ф1750mm | Ф1900mm | |
| Effective length of gap* | 590mm | |||
| Width of bed | 755mm | |||
| Max. length of workpiece | 1.5/ 2/ 3/ 4/ 5/ 6/ 8/ 10/ 12m | |||
| Max.turning length | 1.35/ 1.85/ 2.85/ 3.85/ 4.85/ 5.85/ 7.85/ 9.85/ 11.85m | |||
| Max. weight of workpiece | 5000kg | |||
| SPINDLE | | |||
| Spindle nose | A2-15 | |||
| Spindle bore | Ф130mm | |||
| Taper bore of spindle | Metric Ф140 1:20 | |||
| Steps of spindle speed | 24(Normal), 12(Reverse) | |||
| Range of spindle speed | 2.5~250rpm | |||
| FEED RANGE OF TOOL POST FOR PER REVOLUTION OF SPINDLE | ||||
| Longitudinal | 0.1~12mm/r | |||
| Cross | 0.05~6mm/r | |||
| Middle tool post | 0.025~3mm/r | |||
| Number of cross feeds | 97 | |||
| RAPID TRAVEL | | |||
| Longitudinal | 3740mm/min | |||
| Cross | 1870mm/min | |||
| Middle tool post | 935mm/min | |||
| THREADING | | |||
| Metric pitch threads | 1~120mm/ 45 | |||
| Whit-worth threads | 30~¼TPI/ 42 | |||
| Module threads | 0.5~60M.P/ 46 | |||
| D.P. Threads | ½~60DP/ 48 | |||
| TAILSTOCK SLEEVE | | |||
| Taper bore | Metric 80 | |||
| Max travel | 300mm | |||
| External diameter | Ф160mm | |||
| OTHERS | | |||
| Pitch of longitudinal ball screw/diameter | 12mm/ Ф70mm | |||
| Size of tool shank | 50×50mm | |||
| Vertical distance from spindle center to installing basis | 41mm | 51mm | ||
| Max travel of cross slide | 720mm | |||
| Swing angle of tool post | ±90° | |||
| Max travel of middle tool post | 400mm | |||
| Main motor power | 22kw | |||
| Rapid feed motor power | 1.5kw | |||
| Coolant pump power | 0.25kw | |||
