Intel N3530 N3540 4 LAN Mini PC Server, Firewall Switch, Mini PC for Firewall

Product Description

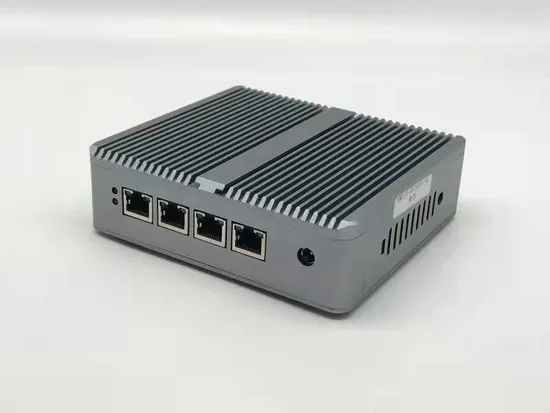

Desktop Fanless Mini Server PC
Intel J1900 Quad Core 2.42GHz/J1800/N3540/N3530 2.0GHz
1*SO-DIMM,DDR3L 1600MHz Memory,Up to 8GB
4*Intel I211-AT Gigabit LAN
Desktop 4 Gigabit LAN Network Appliance Mini Server

Model	RO-19NUC-4L
CPU	Intel J1900 Quad Core 2.42GHz/J1800 /N3540/N3530 2.0GHz
Chipset	SOC
Graphic	Integrated Intel HD Graphics
Output	VGA/HDMI
RAM	1*SO-DIMM,DDR3L 1600MHz Memory,Up to 8GB
LAN	4*Intel I211-AT Gigabit LAN
Storage	SATA2.0, M-SATA
Extension	2*MINI-PCIE(forM-SATA/WIFI )
USB	1*USB 3.0,2*USB 2.0(1*USB2.0 Optional)
COM	NA
Outer I/O	1*USB 3.0
	1*USB 2.0 (Or 1*USB 3.0)
	1*VGA
	1*HDMI
	4*LAN
	1*PWR
	1*RST
	1*LED(Power /Hard Disk Indicator )
	1*DC-IN
Inner I/O	1*USB2.0 Pin(Can extention to 1 x USB2.0)
	1*F_PANEL pin
	1*AUTO-SEL Power On Jumper
	1*CLR_CMOS CMOS Clear Jumper
	1*SYS-FAN Pin
	1*SATA
	1*2pin SATA Power Supply
BIOS	AMI 8M BIOS
Power	DC12V Power Supply
Heatsink	Aluminum Fanless Heatsink (Upper Side Heatsink) Black/Grey
Working Status	-15~60ºC;0% ~ 95% Relative Humidity ,Non Condensing
Dimmension	126X136x40MM

FAQ 1. Do you provide OEM/ODM service?
A: Yes,.We can support OEM/ODM service, the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.

2. What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece sample for your test.
3. What payment method do you use?
A: T/T,PayPal.
4. What is the lead time of your product?
A: 3 days for sample, 15 working days for large quantity.

5. How does your factory do related quality control?
A: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.
6. What is the warranty time of your product?
A: 1 year warranty for non-artificial damage, for the 2nd to 3rd year we can repair it free, but will charge for the parts that needed to change.
7. Does your motherboard can work 24*7 hours?
Our low power consumption industrial boards have passed very strict tests, there is no problem to work 24*7 hours.
8. Are you a factory or trading company?
A: R&O is a leading R&D and manufacturing technology-innovation enterprise specialized in Industrial Motherboards and embedded products industry.
Our products include: mini-itx motherboard,all-in-one motherboard, 3.5'' industrial motherboard, firewall motherboard, NVR&industrial motherboard, mini PC , HTPC, all-in-one PC, embedded PC, vehicle computers, cloud terminal, networking security, OPS mini PC, NAS storage server, etc.
Computer, OEM / ODM available.

9 If we come to China, can you arrange the visiting to your factory?
A: We warmly welcome and look forward to your visiting to our factory at any time.
