Sym5360thbfs 510c-10 49 47 51 53m 6*4 3axles 3chassis Concrete Pump Truck with Spare Parts for Sale
Basic Info.
Model NO.
SYM5360THBFS 510C-10
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Spiral Type
Productivity
180m²/h
Feeding Height
1400mm
Vibrating Amplitude
0.8mm
Certification
ISO9001: 2000
Condition
New
Color
Green
Engine Power
297kw
Engine Displacement
10518ml
Front Track
2110mm
Fuel Type
Diesel
Transport Package
Bulk / Roro
Specification
9112*2496*2980 mm
Trademark
Jiuhe
Origin
Hunan
HS Code
8705909100
Production Capacity
1
Product Description
Product Description
SYM5360THBFS 510C-10 49 47 51 53m 6*4 3axles 3Chassis Concrete Pump Truck with Spare Parts for Sale
Energy-saving With cycle times of up to 29 per minute (at 12MPa), pumpefficiency is increased up to 25% while fuel consumption is decreased by up to 10%. Safey
Our C10 series truck mounted concrete pump exemplifies Top brand's precise, rigorous manufacturing philosophy and uncompromising focus on safety.
Highly Wear Resistant Part
The highly wear resistant parts improve efficiency and reduce down time. Self-diagnosis Technology
Continually monitors more than 200 aspects of the system during operation. Faults are displayed on the monitor. Review of the detected faults can reduce troubleshooting time by 70%.

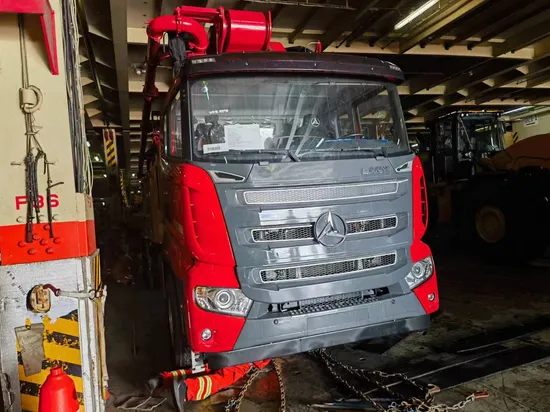

Detailed Photos
Product Parameters
| Full length | 12350mm |
| Overall width | 2550mm |
| Total height | 4000mm |
| Total weight | 36000kg |
| Parameters of arm support leg | |
| Vertical height of the boom | 50.1m |
| Horizontal length of boom | 45m |
| Vertical depth of the boom | 36.7m |
| Minimum deployment height | 13.3m |
| Length of the first section of arm | 9335mm |
| Angle of the first arm | 89° |
| Length of the second section of arm | 6871mm |
| Angle of second section of arm | 180° |
| Arm length of the third section | 7035mm |
| Angle of the third section of arm | 180° |
| Arm length of the fourth section | 8270mm |
| Angle of the fourth arm | 230° |
| Arm length of the fifth section | 8525mm |
| Angle of the fifth arm | 180° |
| Arm length of the sixth section | 6025mm |
| Angle of the sixth section of arm | 180° |
| Turntable rotation angle | ±360 º |
| The seventh arm | \mm |
| Expanded width of front leg | 9665mm |
| Section VII arm rotation angle | \° |
| Expanded width of rear leg | 10470mm |
| Pumping system parameters | |
| Low pressure of theoretical concrete displacement | 180m³/h |
| High pressure of theoretical discharge of concrete | 120m³/h |
| Theoretical pumping pressure low pressure | 8.3Mpa |
| Theoretical pumping pressure High pressure | 13Mpa |
| Theoretical pumping times Low pressure | 29 times/Minute |
| Theoretical pumping times High pressure | 20 times/Minute |
| Inner diameter of delivery cylinder | 260mm |
| Transfer cylinder stroke | 1900mm |
| Hydraulic system | Open type |
| System oil pressure | 32Mpa |
| Fuel tank capacity | 680L |
| Water tank volume | 620L |
| Delivery pipe diameter | 125mm |
| End hose length | 3m |
| Pipe diameter of end hose | 125mm |
| Chassis parameters | |
| Chassis model | SYM5360THB1F |
| Engine model | D13C6-480E0 |
| Maximum net engine power | 348/1900kW/rpm |
| Emission standards | Country |
| Fuel tank capacity | 600L |
| Displacement | 12.96L |
| Maximum speed | 90km/h |
