Lxshow Metal Steel Sheet Plate Rolling Machine Price for Sale

Product Description

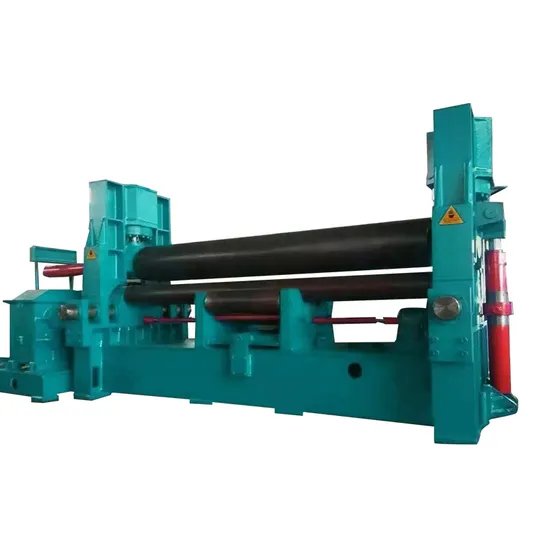

Its three rolls are solid forging rolls, and after tempering and quenching treatment, the upper roll can move horizontally and up and down, through the vertical up and down movement of the hydraulic cylinder, to press the plate to roll, it can also move horizontally, the straight edge of the plate for pre-bending to achieve a better rolling effect.
The middle of the upper roller is a drum shape, and a group of rollers before and after the lower jointly solve the situation of bulging in the middle of the drum. The lower roller is the main rotating roller, and the lower roller is driven by the motor reducer to rotate. Equipped with hydraulic tipping, tipping cylinder can fall down to take the workpiece more convenient and labor-saving, machine equipped with plc programmable display control, digital operation is easy to learn.
The upper roller universal plate rolling machine is the most advanced style of the three-roll plate rolling machine, which is very suitable for rolling thick plates, and can be 120mm, 140mm, 160mm.
Product Parameters

specifications and models	W11SNC-120×2500(Q345R)
structural style	Upper roller level adjustable
Control type	Nc controller
working condition	Cold rolling
Ambient temperature and relative humidity	-15~+45OC,90%
power	Three-phase AC power supply 380V, 50HZ
working system	24 hours/three shifts per day
Apply pressure to the upper roll	2100t
Maximum plate width	2500mm
Working length of roller	2600mm
Symmetrical winding	T120×B2500×φ4800(Q345R)mm
Asymmetric winding	T100×B2500×φ4000(Q345R)mm
Minimum coil thickness	16mm
Full load remaining straight edge length	≤2 times plate thickness
Upper roll diameter	Φ960mm
Lower roll diameter	Φ600mm
Two lower roll center distance	1160mm
Coil speed	3.5m/min
Upper roller pressure speed	About 90mm/min
Idler diameter	φ700mm
Idler count	4 roots
Number of idlers	1 set
Main motor power	2×75kw
Hydraulic motor power	55kw
Mobile motor power	37kw
Elevating motor power	15kw
Maximum working pressure of hydraulic system	20Mpa

Main Parts
Lifting Screw AssemblyScrewTurbo AssemblyReducerElectronic Control System (Siemens)Hydraulic System
Advantages
1.Our three rolls are all made of superior forged circles, which are rough processed, quenched and tempered, finished, and quenched. The material is durable and has high surface hardness. Compared with ordinary round steel or even hollow rolls used in other areas, It is not the same product.
2.The chassis and wall panels of our plate rolling machine are processed as a whole after welding and forming. The materials are abundant and high-precision, and the welding process of loose parts is not used.
3.As for accessories, the motors and reducers of our plate rolling machine are all locally produced high-quality products, and the electrical appliances are Siemens, with stable overall performance, low failure rate and long service life.
Application

Factory
* About Jinan Lingxiu Laser Equipment Co., Ltd.is established in July 2004, owns more than 500 square meters of researching and office space, more than 32000 square meters factory.All machines , passed the European Union CE authentication, American certificate and are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries and areas,and supply OEM service for more than 30 manufactures.
Customer Visit

Our Team
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.
At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: If we are interested in your machine, how do we choose?
A:In order to recommend a more suitable machine for you, please tell me:
1. The material you want to roll
2. Material thickness and width
3. Minimum roll diameter. Q: Do you have after sales support?A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running. Q: Do you have any other machine style?A: Yes, if you have any questions, you can contact us any time, 24x7, we always here.
