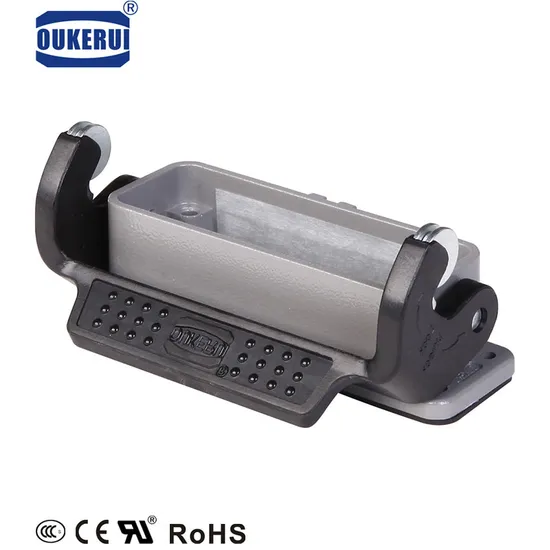

Heavy Duty Connector for Electricity Supply, Automation Control Cabinet and Other Industrial Machines
| Negotiable | 10 Sets (MOQ) |
Basic Info.
Model NO.
HZW-HA-016M
Application
Transmission of Electrical Signals
Character
High Temperature Resistance
Production Process
Injection Molding
Shape
Rectangular
Certification
UL
Contact Material
Copper
Housing Material
Die-Casting Aluminum Alloy
Housing Coating
Anti-Corrosion Powder Spray
Working Environments
IP65 for Various Harsh Environments
Transport Package
Polybag and Double Cartons
Specification
CE, UL, ROHS
Trademark
Oukerui
Origin
China
HS Code
8536900000
Production Capacity
3000pieces Per Day
Product Description
Exploded view of Oukerui HDC Connectors
SPECIFICATION | |||
| Model No. | HZW-HA-016-M | Gender type | Male |
| Pins | 16+PE | Contacts' surface processing technical | Silver or Gold Plated |
| Terminal type | Screw Terminal | Mounting type | Bulkhead/Surface/ cable to cable |
| Housings material | Dia casting aluminum alloy | Insert Block | Top grade PC |
| Working Voltage | 230/400V | Working Current | 10A |
| Rated Impulse Voltage | 4KV | Temperature Bearing Range | -40ºC~+125ºC |
| International protection(IP) grade | IP65 | Pollution Degree | 3 |
| Flammability | V0 | Working Voltage Acc to UL/CSA | 600V |
| Mechanical Life Span | Min 500 times | Trademark | Oukerui |
| Warranty | 1 Year | Transport packing | Carton |
| Origin | China | HS code | 8530900000 |
SPECIFICATION OF CONTACT | |||
| Material | Copper Alloy | Surface Treatment | Silver/Gold Plated |
| Terminal | Screw/Crimp Terminal | Wire Gauge | 1.0-2.5mm2(AWG18-14) |
| Screw terminal tightening | 0.5Nm | Stripping length | 7-9mm |
WIDE APPLICATION IN VARIOUS INDUSTRIES
HDC CONNECTOR GROUP
OUR PLANT
OUR TEAM
