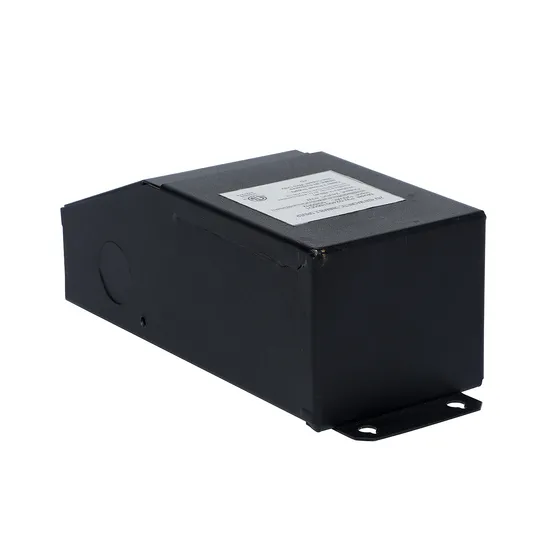

120V 277V to 12V 24V Magnetic LED Power Supply

Product Description

Product Introduction
Magnetic LED Drivers provides low voltage power to dimmable LED lights, pool lights and lighting fixtures in residential and commercial applications. They are compatible with on/off switches and MLV dimmers. All dimmers have been tested with our LED drivers in the laboratory.
Installation: Integrated Junction Box with Multiple Knock-Outs for Easy Installation Protection: Equipped with circuit breakers to protect both the driver and the LED load Dimming: Compatible with many MLV dimmers, on/off switches Housing: Black powder-coated metal NEMA 3R Enclosure, with the mounting tab at the top Certification: ETL Listed to US (UL8750) and Canada (CSA C22.2#250.13) Safety Standard Warranty: 3-year warranty Working environment: dry and wet locations Transformer: encapsulated EI core. Class 2 options available. Single and multi circuits output available Mounting: vertically mounted using two keyholes at the top. Fanless design, cooling by free air convecton Input: 120VAC, 50/60Hz. Output: 12 or 24 VDC Wattages: 20W, 40W, 60W, 75W, 96W, 100W, 150W Average Efficiency: 80% to 90% Power Factor: 0.9 Thermal Class: Class B 130ºC Operating Temp.: -20ºC to 70ºC
Specs

Power	Input	Output	Class 2
20W	120/277VAC, 50/60Hz	12/24VDC	Yes
40W	120/277VAC, 50/60Hz	12/24VDC	Yes
60W	120/277VAC, 50/60Hz	12/24VDC	Yes for 24V
75W	120/277VAC, 50/60Hz	12/24VDC	Yes for 24V
96W	120/277VAC, 50/60Hz	24VDC	Yes
100W	120/277VAC, 50/60Hz	12VDC	No
150W	120/277VAC, 50/60Hz	12/24VDC	No
200W	120/277VAC, 50/60Hz	12/24VDC	No
250W	120/277VAC, 50/60Hz	12/24VDC	No
300W	120/277VAC, 50/60Hz	12/24VDC	No

About us We focus on manufacturing landscape lighting transformers, magnetic led drivers, pool light transformers, and a wide range of power transformers for landscape, commercial, industrial medical, and residential applications, based on functionality, quality, aesthetics, and budget.
Based in Dongguan, China with a plant area of 3000 sqm, our in-house design and engineering team continues pushing the innovation boundary across the full spectrum of power transformers. Our advanced manufacturing, customer support capabilities, and superior R&D enable us to create and tailor power supply and transformer solutions to address the needs of an ever-evolving commercial and residential market.
We supply our products to the Lighting (industrial and residential), Machinery, Automation, Chemical, Medical, Entertainment, Architectural, and Commercial markets, to name just a few. Today our power supply transformers can be found in hundreds of thousands of installations, driving millions of projects worldwide.
