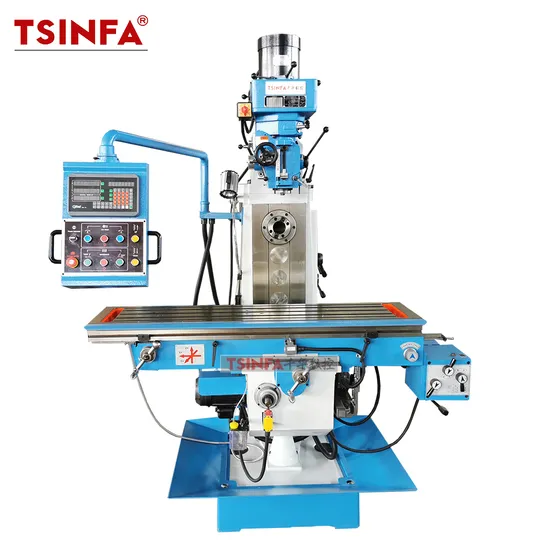

Xtr32 Universal Milling Machine Turret Milling Horizontal and Vertical

Product Description

Product Description
The XTR32 machine can be used both for vertical milling and horizontal milling, with corresponding attachments.Cylinder mill, round piece mill, shape mill and end mill can be installed on the conical hole of main pivot of the machine, which is suitable for processing plane surface, oblique plane, groove, hole, gear of all kinds of samll , medium parts. User can select universal dividing head to process groove of thread It is the ideal machining equipment for the industries of mechanic manufacture, mould, automobiles and motorcycles.
-Vertical Milling
-Horizontal Milling
-Worktable 45 degree rotation (optional, Can be customized)
-X Y Z axis power feed Product Parameters

Specification	Unit	XTR36	XTR32
Table size	mm	1500*360	1500*320
Numbers,width distance between T - slot T	mm	3*18*80	3*14*70
Travel (longitudinal, cross,vertical ) ( )	mm	900*320*450	800*300*450
Horizontal spindle to worktable	mm	0-350	0-350
Level spindle taper	taper	ISO50	ISO40
Milling head spindle taper	taper	ISO40	ISO40
level spindle speed grade	steps	12	12
level spindle speed range	rpm	60-1800	40-1300
Milling Head spindle speed grade	steps	16	16
Milling head spindle speed range	rpm	80-5440	80-5440
Grade of the work-table feeds	steps	8	8
Range of feed speeds longitudinal,cross, vertical	mm/min	22-555	22-555
Feed motor	kw	0.75	0.75
Motor (Vertical Horizontal)	kw	2.2(V)/4(H)	2.2(V)/3(H)
Coolant pump	w	60	40
Gross weight/Net weight /	kg	2400/2200	1600/1500
Overall dimensions (L W H) ( )	mm	1900X1600X2000	1600X1600X2000
Packing Size (L W H) ( )	mm	2000X1700X2250	1680X1680X2250

Detailed Photos
