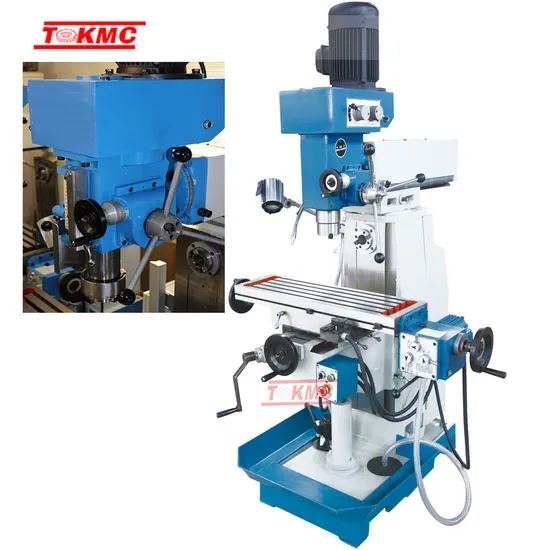

Zx7550z ISO40 Manual Vertical Milling Drilling Machine
| US$2,000.00-8,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZX7550Z
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE
Condition
New
Function
Milling ,Drilling ,Cutting,Tapping
Spindle Motor
2.2kw
Type Machine
Milling & Drilling Machine
Transport Package
1290× 1220× 2100mm
Specification
820/900kgs
Trademark
tokmc
Origin
China
HS Code
84595900
Production Capacity
100 Sets/Month
Product Description
ISO40 manual vertical milling drilling machine| Item | ZX7550Z |
| Spindle taper | ISO40 |
| Distance from spindle to table | 90-420mm |
| Spindle speeds | (8step)90-2000r.p.m(V) |
| Spindle travel | 120mm |
| Max.drilling capacity of auto-feeding | 50mm |
| Head movement | ±45° |
| Table size | 800×240mm |
| Table travel(horizontal/Cross/Vertical) | 400/230/350mm |
| T-slot number/Width/Distance | 3/14mm/60mm |
| Horse power for main motor | 2.2kw |
| X axis driving motor | 370W |
| Coolant pump power | 40W(12L) |
| Overall dimension | 1290×1220×2100mm |
| Packing size | 1140×1220×2220mm |
| N.W./G.W. | 820/900kg |
