China Heavy Duty 4/6/8/10/12 M3 Building Construction Project Machinery Used Concrete Mixer Truck Mixing Truck Price

Product Description

Product Description
China Heavy Duty 4/6/8/10/12 M3 Building Construction Project Machinery Used Concrete Mixer Truck Mixing Truck Price 1,On the basis of in-depth and integrative research on theindustry, the XCMG new generation truck mixers are system optimized by taking the integrated modularization design totruly realize the integrated innovation.
2,Particular mixing technology with continuous trace,original double log spiral technology with changeable lift angle and changeable screw pitch and optimized auxiliary blades and pressure-reducing hole design can make the operation path of the spiral in perfect state and can ensure the best concrete flowing trend in mixing drum and more uniformly discharging.It can effectively solve the blocking problems in concrete pumps caused bynonuniform concrete.
3,Optimized chassis matches with upper parts and such parts as front base andaccessory beam, rear base and tilted beam, rear base and accessory beam adopt integration design.

Product Parameters

Item		Unit	G04K	G06K	G08K	G10K	G12K
Overall Parameter	Curb weight	kg	6905	12250	14000	14600	15870
	Outline dimension	(L×W×H) mm	7270×2280×3345	8240×2500×3740	8935×2500×3890	9510×2500×3970	9850×2500×3980
Chassis	Driving type		4×2	6×4	6×4	6×4	6×4
	Wheel base	mm	3800	3225+1350	3625+1350	3800+1350	4025+1350
Engine	Rated power	kW	140	247	247	257	273
	Displacement	L	6.494		9.726	9.726	9.726
	Emission standard		Euro III	Euro II	Euro II	Euro V	China II
Drum system	Geometric volume	m³	7.7	11.6	13.6	16.8	19.5
	Max.diameter of drum	mm	1980	2250	2280	2280	2380
	Drum length	mm	3595	4217	4795	5596	5967
	Rotating speed	r/min	0~14	0~14	0~14	0~14	0~14
	Feeding speed	m³/min	≥ 3	≥3	≥3	≥3	≥3
	Discharge speed	m³/min	≥ 2	≥2	≥2	≥2	≥2
	Discharge residual rate	%	< 0.4	<0.7	< 0.4	<0.7	<0.7

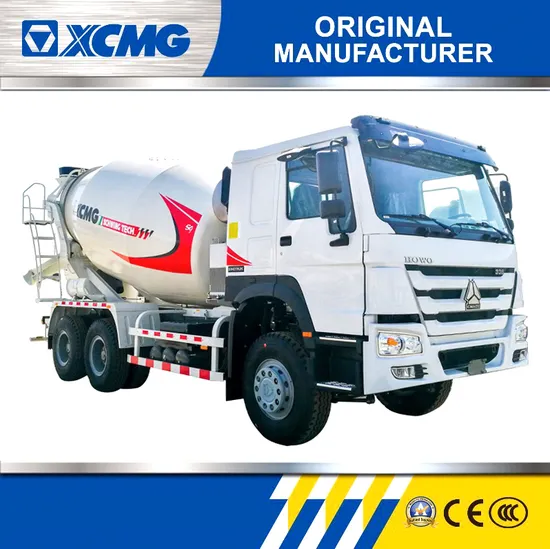

Product Picture
Company Profile
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
