Food Milling Grinding Grinder Pulverizer Machine Typical of Universal Grinder

Product Description

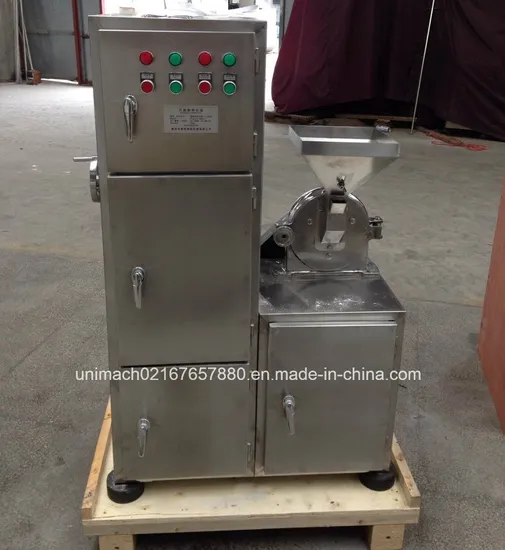

Food Milling Grinding Grinder Pulverizer Machine typical of Universal Grinder
Specifications:
Mainly used in pharmaceutical, chemical, food (example: Ginger, chili, pepper, oil, wheat, soy, star anise, cinnamon, dried vege.
Structure and working principle of Pharmaceutical Grinder Machine
1, the structure: It includes main cabinet, door, turbo, spindle, screen, pulleys and motors and other component parts.
2, Working principle:
When it works, the motor drive shaft and the turbine speed rotation. Ring on the turbo and the screen broken grinding blocks, grinding vice, when the material from the hopper into the machine chamber, the material in the rotation of the turbine air flow closely friction and impact strongly on the inside of the turbine blades and vanes the gap between the blocks and grinding grinding again. In the crushed material while inhaling a lot of air turbine, which has played a cooling airflow machines, grinding materials and fine material transfer effect. Depends on the fineness of grinding material properties of the material and the mesh size, and the throughput of the material and the air.
3, Bearing parts equipment with a special labyrinth seal, can effectively prevent dust from entering the bearing cavity, thus extending the service life of the bearing. Machine equipped with a silicone rubber door seals, no dust leak and contaminate the operating environment.
Features of Pharmaceutical Grinder Machine
1, Strong crushing ability, low energy consumption, product fineness relatively small.
2, large crushing chamber, turbo pressure generated during operation of high-strength, not only to increase production capacity and reduce the over-crush phenomenon, and can effectively avoid the material produced in the grinding process on the screen deposition and clogging. You can also maximize strength and pressure to take away the heat generated by crushing cavity.
3, due to enhanced shear, and therefore for the fibrous material and the grinding capacity equipment than the average high.
4, screen installation convenient, reliable positioning, are used plug-in. Will ring sieves with respect to the form of life a lot higher.
5, Built-in motor, lower the machine's center of gravity, effectively reducing device noise.

Model	20B	30B	40B	60B
Material	304 stainless steel	304 stainless steel	304 stainless steel	304 stainless steel
Fineness(mesh)	30-150	30-150	30-150	30-150
Capacity(kg/h)	60-150	100-300	160-800	500-1500
Voltage(V)	380	380	380	380
Power(KW)	4	5.5	7.5	11
Main speed(r/min)	4500	3800	3400	2800
Overall dimensions(cm)	95*55*125	115*60*163	120*65*155	135*75*168
Weight(kg)	200	300	420	620
