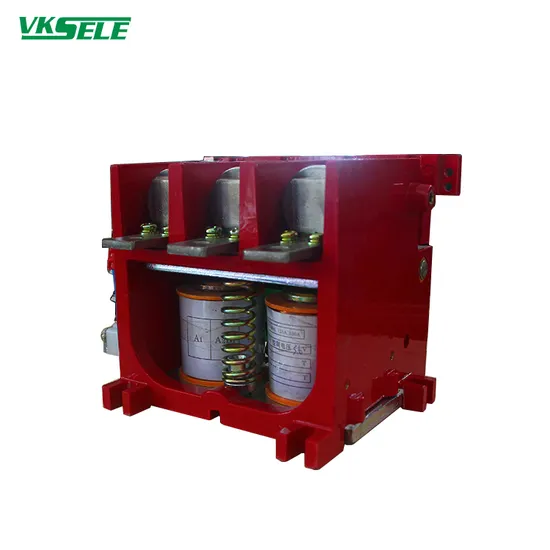

Ckj5-400 400A Vertical 1140V AC Medium Voltage Vacuum Contactor

Ckj5-400 400A Vertical 1140V AC Medium Voltage Vacuum Contactor

US$145.00-260.00 1 Piece (MOQ)

Basic Info.

Model NO.
CKJ5-400
Phase
2
Main Circuit Rating Voltage
AC220V
Main Circuit Rating Current
400A
Type
Ac Contactors
Transport Package
Carton
Specification
CKJ5-400
Trademark
VKSELE
Origin
Wenzhou
HS Code
8536901900
Production Capacity
1000pieces/Month

Packaging & Delivery

Package Size
42.00cm * 35.00cm * 25.00cm
Package Gross Weight
35.000kg

Product Description

The main technical parameters
1.Rated voltage:1140V 50/60HZ
a:Rated working voltage of main circuit of contactor is 10 KV.
b:Rated voltage of control circuit:AC 110V,(127V),200V,380V DC110V 220V
2.Rated current: Main circuit 160A,250A,400A,630A,In rated voltage AC3 160A,250A,400A,630A.3.Rated frequency: 50/60Hz.
4.Operating Frequency and Working System
The operating frequency of repetitive short-term working system is 600h-1.5.The main contact parameters are shown in the table:
Specification:
Model Rated voltage(V) Rated Current(A) Main contact parameter Power frequency withstand voltage
Main circuit Control circuit Main circuit Open distance (mm) Overtravel (mm) Main circuit Auxiliary circuit Control circuit
CKJ5-63 1140 110.220.380 63 1.8 ±0.2 1.0 ±0.2 4200 2500 200
CKJ5-80 1140 110.220.380 80 1.8 ±0.2 1.0 ±0.2 4200 2500 200
CKJ5-125 1140 110.220.380 125 1.8 ±0.2 1.0 ±0.2 4200 2500 200
CKJ5-160 1140 110.220.380 160 1.8 ±0.2 1.0 ±0.2 4200 2500 200
CKJ5-250 1140 110.220.380 250 2.0 ±0.2 1.0 ±0.2 4200 2500 200
CKJ5-400 1140 110.220.380 400 2.0 ±0.2 1.0 ±0.2 4200 2500 200
CKJ5-600 1140 110.220.380 600 2.0 ±0.2 1.0 ±0.2 4200 2500 200
Dimension:
