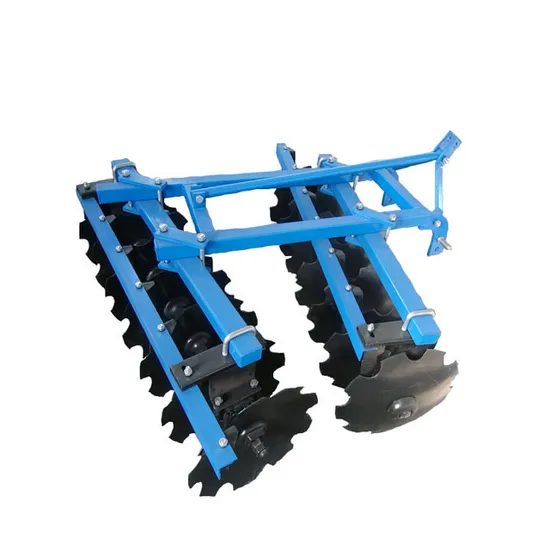

Tractor Mounted Agricultural Machinery Light-Duty Disc Harrow with 14PCS Disc Blades

Product Description

tractor mounted agricultural machinery light-duty disc harrow with 14pcs disc blades:
Product Description

The 1BQX-1.3 14pcs disc blades light duty disc harrow is mainly used for stubble removal before farming, surface hardening breaking, straw chopping and returning to the field, soil crushing after farming, soil leveling and moisture conservation, etc. it can also replace plow for soil ploughing on mature land. After raking, the ground surface is smooth and the soil is loose and broken. It has a strong adaptability to heavy sticky and weedy plots.
The disc harrow absorbs the advantages of the same kind of foreign advanced products. It is designed according to the standard. The whole machine adopts a combined structure, with a square welded pipe integral rigid rake frame as the main body, equipped with a hydraulic take-off and landing transport wheel, a spring leveling mechanism and a special outer spherical surface and inner square hole sealing rolling bearing for disc harrow. It is reasonable in structure, firm and durable, convenient in transportation, small in turning radius, easy to adjust, easy to operate and easy to operate It is easy to maintain and is an advanced disc harrow product in China.
Product Parameters

Model	1BQX-1.3
Working width (mm)	1300
Working depth (mm)	100-140
No. Of disc (pcs)	14
Dia. Of disc (mm)	460
Weight (kg)	220
Linkage	Three point mounted
Matched power (hp)	15-18

Product Advantage
1.Disc quantity: 14pcs
2. It the scraper for each disc blade to clean dirt and grass.
3. 65 Mn disc blade of 460*3mm hardness: 38-45 HRC, assuring the toughness and wear ability of disc blade .
4.Rigid steel frame, the main beam is 50-70 mm ,strong and durable.
5.High Quality square shaft made of quenched and tempered No.45 steel;the size is 28*28 mm.
6.Bearing is covered by sealed bearing seat to protect it from sand, dust etc.
Detailed Photos

This is Square axle.

The square axle assembly (includes spool spacer, semi-spacer, bearing assemble, washer )
