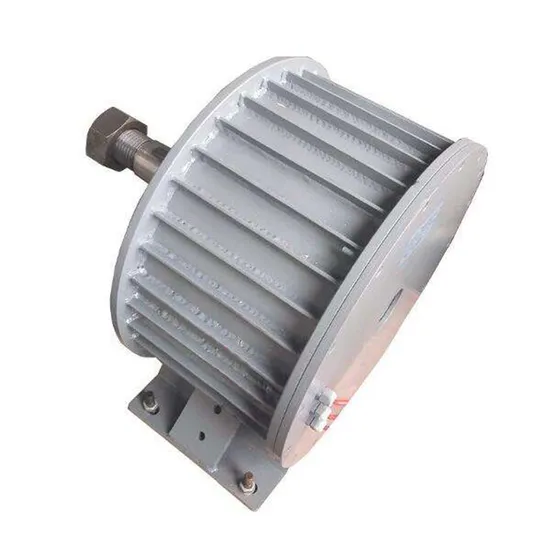

10kw 220V Low Rpm AC Permanent Magnet Generator Alternator
Basic Info.
Model NO.
NE-10KGP
Output Type
AC Three Phase
Number of Blade
Three Phase or Others
Rotating Shaft
Horizontal
Stress Way of Blade
Resistance
Power
10-100kW
Phase
Three Phase
Certification
CE, ISO
Product Name
Permanent Magnet Generator
Rated Power
10kw
Max Power
13kw
Rated Voltage
96V/120V/220V or as Your Order
Type
Permanent Magnet Generator
Rated Rotated Speed
170r/M
Start Torque
1.28nm
Rated Torque
561.7 Nm
Transport Package
Standard Carton
Specification
180kg
Trademark
Bessent
Origin
Jiangsu
Production Capacity
100 Units Per Month
Packaging & Delivery
Package Size
60.00cm * 61.50cm * 60.00cm
Package Gross Weight
184.000kg
Product Description
10kw 220V Low Rpm AC Permanent Magnet Generator AlternatorProduct Parameters
| Model | NE-10KW |
| Rated power | 10KW |
| Maximum power | 13KW |
| Rated voltage | 96V/120V/220V or as your order |
| Rated rotated speed | 170r/m |
| Top net weight | 180kg |
| Output Current | AC |
| Start Torque | 1.28Nm |
| Rated Torque | 561.7Nm |
| Generator | 3 phase permanent magnet synchronous generator |
| Insulation Class | F |
| Service Life | More Than 20 years |
| Bearing | HRB or for your order |
| Shaft Material | Iron |
| Shell Material | Carbon Steel |
| Permanent Magnet Material | Rare Earth NdFeB |
| Protection Grade | IP54 |
| Lubrication | Lubrication Grease |
| Working temperature | -40ºC ~ 80ºC |
Company Profile
Certifications
FAQ 1. Q:how can we guarantee quality? A:Always a pre-production sample before mass production;Always final Inspection before shipment;2.Q:what can you buy from us? A:wind turbine,PMG generator,solar panel,UPS system,Hybrid solar and wind system3.Q:why should you buy from us not from other suppliers?
A:1.More than 8 years R&D experience of wind turbine products;
2.Have more than 6 production lines with daily production more than 500pcs;
3. Have qualified technician teams to provide professional proposal;
4.Could do OEM&ODM for clients 5. Various Types.
