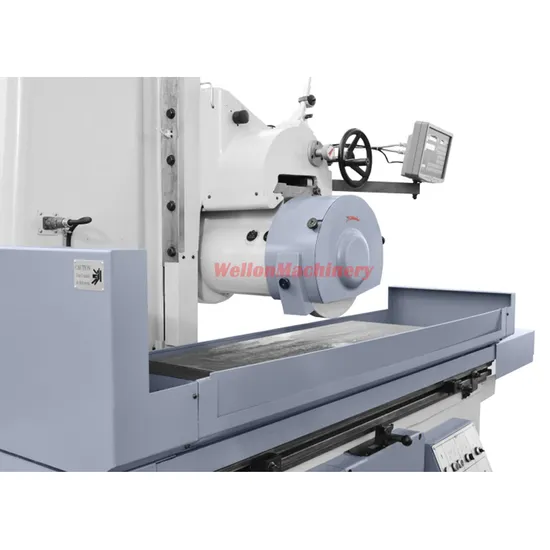

Hydraulic Surface Grinder Machine M7130A

Product Description

Product Description
Product Parameters

This series of surface grinder is most suitable for the grinding steel, casting and non-ferrous parts of machine
manufacturing industry.
The accuracy of the machine has reached the National Standard for horizontal spindle & rectangular worktable
surface grinder.
The longitudinal movement of the worktable is driven by vane pump, which makes the movement smooth and
low noise.
The bearings of the wheel head spindle adopt bimetal shell bearing, which can afford heavy impact and make
the machine able to carry out heavy load grinding.
The cross movement of the wheel head can be driven by hand or by hydraulic oil automatically. It is easy to
operate. The vertical feed of the wheel head is driven by hand. It is also assembled with rapid elevating motor,
which can reduce the intention of work labor as well as enhance the work efficiency.
The machine moves smoothly and has reliable performance, low noise and stable accuracy. It is easy to operate
and deeply welcomed by the customers.
Product main technical parameters:

Model		Unit	M7130A
Worktable size		Mm	300x1000
Max matching dimension		Mm	300x1000
Distance from spindle to table		Mm	575
Longitudinal move speed of table		m/min	3-27
T-slot number x W		Mm	3x18
Wheel head Cross moving	Continuous feed speed	m/min	0.5-4.5
	Intermittent feed speed	Mm/t	3-30
Vertical Moving of wheel head	Rapid speed	Mm/min	400
	Hand wheel feed	Mm/gra	0.005
Wheel Head motor	Power	Kw	5.5
	Rotation speed	Rpm	1440
Total power		Kw	8.63
Max loading capacity of table		Kg	470
Chuck size		Mm	300x680x1
Wheel size		Mm	350x40x127
Package dimension		Cm	284x171x213
Machine Weight		t	3.5

Standard accessories:
Wheel Flange
Balancing Arbor
Wheel Exactor
Coolant Tank
Working Lamp
Tool Box and Tools
Wheel dresser Stand not include diamond pen
Standard Grinding Wheel
Leveling Wedge and Bolt
Built in Electro Magnetic Chuck Controller
Optional accessories:
Standard Electro Magnetic Chuck
Wheel Flange
Balance Stand
Coolant Tank with magnetic separator
Coolant tank with paper filter
Coolant with magnetic separator and paper filter
Parallel wheel dresser
