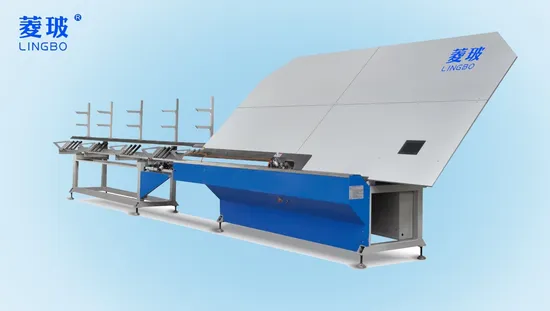

Factory Direct Automatic Aluminum Spacer Bending Machine
Basic Info.
Model NO.
ZWJ-01
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Function
Insulating Glass Machine
Keyword
Bending Machine
Manufacturer
Yes
Color
Customize
CE Certificate
Yes
Delivery Time
28days
Air Pressure
0.7MPa
Spacer Width
6mm-20mm
Conveying Speed
at 0-90m/Min(Adjustable)
Frame Max Size
2000mm×2000mm
Frame Min Size
350mm×350mm
Power
3p 415V/1p+N 240V, 50Hz 5kw
Supports
7X24 Online Supports
Usage
for Double Glass Processing
Producer
Yes
Transport Package
Plastic Film Package
Specification
ZWJ-01
Trademark
LINGBO
Origin
China
HS Code
8464901900
Product Description
Product DescriptionFactory Direct Automatic Aluminum Spacer Bending Machine
1.Apply CNC control system with touch screen interface (Both Chinese and English language) .Parameter setting and transfer are very convenient .
2.Adopt two axis servo motor accompanied with encoder for profile supply and bending control. Size error within ±0.3mm/m, angle error within ±0.3°.
3.Be able to imitate finished frame shape. The image is symbolic and lively .
4.Four profile magazines for different specifications of spacers .
5.All activities can be controlled manually for the convenience of test and overhaul.
6.Intelligently avoid spacer connection part. Automatic cutting after bending. Shape shift among line,angle and arc are flexible.
Product Parameters
Factory Direct Automatic Aluminum Spacer Bending Machine Technical Parameter
| Spacer Width | 6mm-20mm |
| Frame size | Max:2000mm×2000mm Min:350mm×350mm |
| Conveying speed | at 0-90m/min(adjustable) |
| Air pressure | 0.7MPa |
| Power | 3P 415V/1P+N 240V, 50Hz 5kW |
| Machine Size | 10000mm(L)×2200mm(W)×2600mm(H) |
