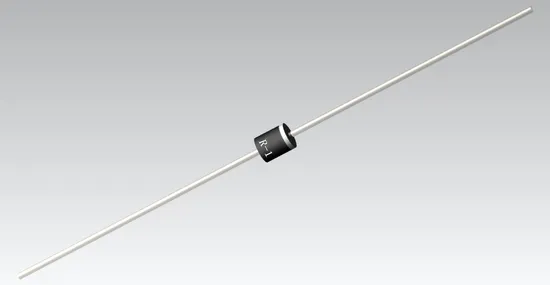

Fast Recovery Rectifier R-1 1A 1000V SMD Fast Recovery Rectifier Diode

Product Description

FAQ:1, Are you Manufacturer or trading company? We are a manufacturer only in diode, bridge rectifiers and automotive rectifier diode. We could supply competitive price and fast delivery and good quality with prompt service, we guarantee that we will reply to our customers within 1-12H once we receive the inquiry, we will do the utmost to help to cut down your cost. AND ZG WILL LIKE TO ASSURE ALL THE CUSTOMERS THAT WHATEVER IS WRITTEN ON THE LABEL OF THE PRODUCT IS 100% TRUE 2. May I have some samples for testing? Yes, OF COURSE. We offer free samples for our customers and they only need to pay the freight for samples. If you have order with us, we will deduct the freight from your first order. 3. What about the delivery ? Usually the lead time is about 1-3 weeks after receiving payment. For many normal parts, we have the quantity in stock and we have the system to ensure the delivery will be on time. 4. What about the payment terms ? Order amount is less than $10000: 80% Advance,and 20% before shipment. Order amount is between $10000 and $20000: 50% Advance and 50% before shipment. Order amount is more than $20000: 30% Advance and 70% before shipment. 5. What about the shipment terms ? FOB Shanghai by sea;
We also work with DHL, FEDEX, TNT and etc. For large quantity , it's up to you to choose the freight forwarder and if you need, we could assist you.

Parameter	Symbols	1F1	1F2	1F3	1F4	1F5	1F6	1F7	Unit
Maximum repetitive peak reverse voltage	VRRM	50	100	200	400	600	800	1000	V
Maximum RMS voltage	VRMS	35	70	140	280	420	560	700	V
Maximum DC blocking voltage	VDC	50	100	200	400	600	800	1000	V
Maximum average forward rectified current	IF(AV)	1.0							A
8.3 ms Non-repetitive peak forward surge current 8.3 ms singlehalf sine-wave	IFSM	30							A
@IF=1.0A Maximum forward voltage	VF	1.3							V
@VDC TA = 25 ºC Maximum reverse current	IR	5							μA
IF=0.5A , IR=1.0A ,IRR=0.25A MAX. reverse recovery time	Trr	150					300		ns
Typical thermal resistance (Note 1)	RθJA	100							ºC/W
Operating junction and storage temperature rang	Tj, TSTG	-55 --- +150							ºC
