Compact Paper Bag Manufacturing Machine for Small Businesses

Product Description

SMART-17 NEW WORLD B SERIES

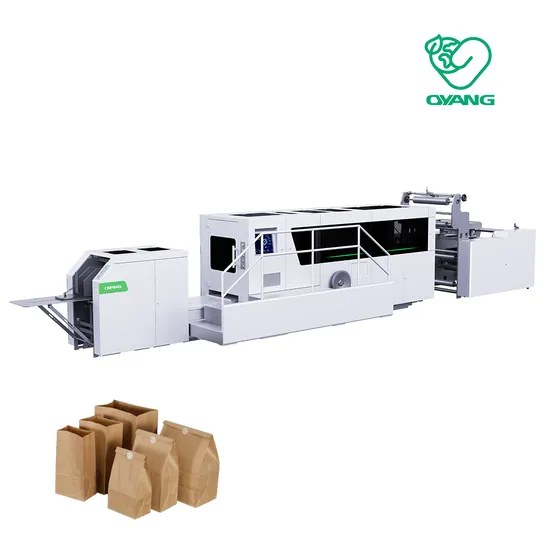

Semi-automatic Roll-fed Paper Bag Machine(Without Handle) This machine is designed to manufacture square bottom paper bags without handles from paper roll,and it is an ideal equipment for producing producing various sized paper bags fast. By implementing steps including paper feeding,tube forming,tube cutting and bottom forming online,this machine can effectively save labor costs. The equipped photoelectric detector can correct cutting length,so as to ensure cutting precision. This machine can process very thin paper,as well as produce paper bags very fast,thus this machine is especially suitable for being applied in food industries.
Product Parameters MAIN PARAMETERS

Model	New World B220	New World B330	New World B 400	New World B 450	New World B 460	New World B560
Paper bag length	190−430mm	280-530mm	280-600mm	280-600mm	320-770mm	320-770mm
Paper bag width	80-220mm	150-330mm	150-400mm	150-450mm	220-460mm	280-560mm
Paper bag bottom width	50-120mm	70-180mm	90-200mm	90-200mm	90-260mm	90-260mm
Paper thickness	45-150g	60-150g	70-150g	70-150g	70-150g	80−150g
Machine Speed	280pcs/min	220pcs/min	200pcs/min	200pcs/min	150pcs/min	150pcs/min
Paper roll width	290-710mm	470-1050mm	510-1230mm	510-1230mm	650-1470mm	770-1670mm
Roll paper diameter	≤1500mm	≤1500mm	1300mm	≤1500mm	≤1500mm	≤1500mm
Machine power Machine weight	34380V 15kw 5600kg	34380V8kw 8000kg	34380V15.5kw 9000kg	34380V 15.5kw 9000kg	34380V 25kw 12000kg	34380V 27kw 13000kg
Machine size	L8.6×W2.6×H1.9M	L9.5×W2.6×H1.9M	L10.7×W2.6×H1.9M	L10.7×W2.6×H1.9M	L12×W4×H2M	L13×W2.6×H2M

Our Advantages 1.Save land area
2.High production efficiency
3.Stable machine operation
4.Wide range of bag making dimensions

Company Profile
Founded in 2006,covering an area of 130,000 square meter, more than 400 workers, Zhejiang Ounuo Machinery Co,.Ltd is a comprehensive company, we are the biggest paper bag machine & nonwoven bag making machine manufacturer in China. we offer complete solutions to customer in the eco-friendly bag making project,including paper bag making solutions, nonwoven bag making solutions,nonwoven fabric production line, we had exported them to all over the world in the past years. Every year we have at least one new design machine.Creating value for customers first is the only way to achieve self-worth. We look forward to cooperate with you!
FAQ Q1. How long will your engineer reach our factory?
Our After-sales Specialist would contact you to confirm the final scheduling according to your reasonable request.
Q2. How many days will you finish installing?
We will finish installation and training within 1-2 weeks.
Q3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets,SIM card, hotel, food, and also their salary 150USD one day per person.
Q4. How long is your machine's warranty period?
All our machine have one year guarantee, starting from finished installation.
Q5. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
Q6. Does your engineer speak English?
Our engineers understand a little English. All of our engineers have more than five years machine installation experience.
Q7. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finish installing. In case any problem, you can contact our after sales specialist at any time. There are 30 engineers at our after-sales department with 30 engineers and they'll take solution videos according your description.
