Automatic Disposable Round Shape Cotton Face Pads Making Machine

Product Description

Automatic Disposable Round Shape Cotton Face Pads Making Machine
1. Machine Introduce
1. Adopting a consistent operation method, the raw materials are automatically conveyed, embossing rolled and cut, automatically counted, arranged and the waste is discharged fully automatically.
2.The equipment adopts a mechanical pressing and conveying device, the conveying and discharging are stable and tidy, and the one-out four (diameter 57mm) round special hob forming mold is composed, which minimizes the loss of raw materials, reduces product costs, and relatively improves product efficiency.
3. The equipment is made of international high-quality steel, and the hob molds are made of imported high-quality special materials, which are durable, accurate in cutting, free of burrs, and high in product precision.
4. The equipment is equipped with a pressing and conveying control device, and is equipped with an automatic waste material receiving device. The main bearings are imported brands.
5. The equipment is equipped with an automatic counting device, and the width of the coil material depends on the product and the size of the equipment mold.
6. The equipment adopts mechanical transmission, and is equipped with special wear-resistant rubber rollers for transportation. Others are conveyed by aluminum alloy cloth guide rollers.
7. The equipment adopts frequency conversion control for speed regulation, and the wiring specification is reasonable, safe and easy to operate.
2.Machine Parameter

Model	SC-H250
Counting way	Spraying counting
Width of material	250mm
Discharge channel	One out of four
Effective door width of machine	250MM
Operating system	touchscreen
Diameter of punching circle	57MM/58MM or customized
Max.unwinding roll diameter	1000MM
The machine frame material	45#
Embossing roller	Steel to steel/steel to wool 1 set of corrosion rod
Speed	600-800 pieces/minute
Voltage	380V/50Hz
Power	5.5kw
Size	2570mm×1200mm×1850mm
Weight	Net weight: 700kg

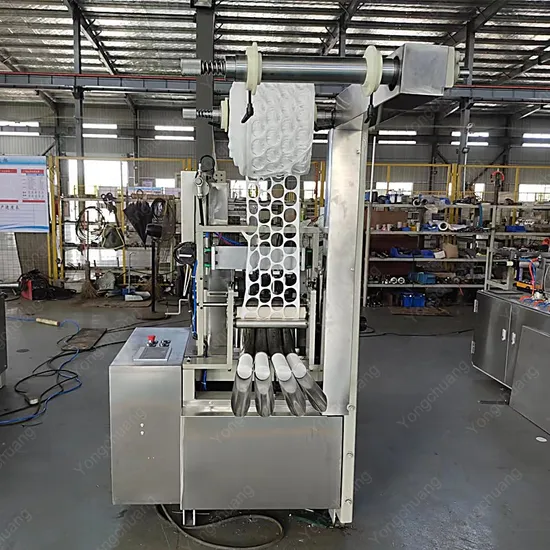

3.Machine Picture
