Heavy Duty Industrial Drive in Rack Systems for Warehouse Storage
| US$0.90-1.15 | 100 kg (MOQ) |
Basic Info.
Model NO.
WD_DR_001
Usage
Tool Rack, Beverage, Clothing, Tools, Supermarket, Food, Industrial, Warehouse Rack, Logistics
Material
Steel
Structure
Rack
Type
Drive-In Pallet Racking
Mobility
Fixed
Height
5-15m
Weight
500-4000kg/Per Level
Closed
Closed
Development
Conventional
Serviceability
Common Use
Design Service
Free CAD Service Available
Back-up Service
Installation Drawing/on Site Instruction
Container Load
15-18tons/1*20′ Container, 20-25tons/1*40′ Contain
Certification
ISO9001
Lead Time
Within 15 Work Days
Transport Package
Airbag; Air Bubbles & Wooden Pallet, etc
Specification
Customizable
Trademark
As requested
Origin
Nanjing
HS Code
73089000
Production Capacity
20000tons/Month
Product Description

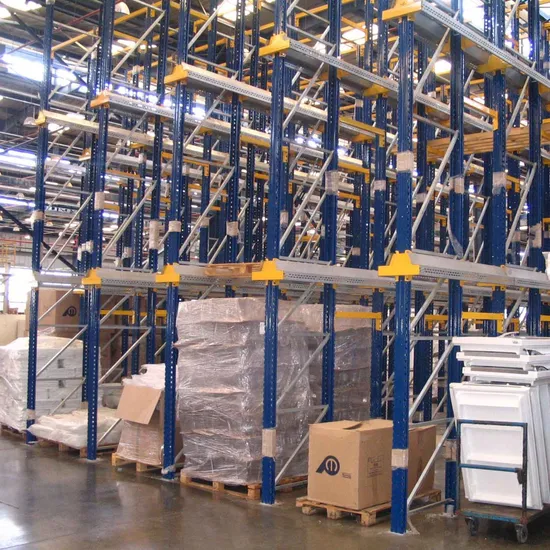

What is Drive in Pallet RackDrive-in pallet rack is a type of storage system designed to maximize space utilization in warehouses, especially commonly used for the storage of high-volume low SKU items. It consists of upright frames with horizontal rails that create channels deep enough for a forklift to enter. Pallets are then loaded onto the rails, one behind the other, creating a high-density storage solution.
Key Features
High storage capacity: By eliminating the need for wide aisles between racks, drive-in systems can significantly increase storage capacity compared to traditional pallet racking.
Space optimization: It can utilize over 80% of the available space in a warehouse.
Suitable for specific goods: Works best for storing large quantities of similar or identical items (homogeneous goods) with low stock rotation. Ideal for seasonal goods or cold storage applications.
Last-In, First-Out (LIFO) principle: Pallets are loaded and unloaded from the same side of the rack, following a LIFO principle where the last pallet loaded is the first one retrieved.
Specification
| Upright | 80*70, 90*70,105*70,120*85mm |
| Hole Pitch | 76.2mm, 50mm, 50.8mm |
| Box Beam Size | 80*50, 90*50, 100*50, 110*50, 120*50, 130*50, 140*50, 160*50 |
| Upright Thickness | 1.8/2.0/2.5/2.75/3.0 mm |
| Beam Thickness | 1.8/2.0/2.5/2.75/3.0 mm |
| Frame Height | Up to 12,000mm |
| Beam Length | Up to 6,000mm |
| Capacity Per Layer | 500-4000Kg |
| Finish | Powder coating(Color customizable) or hot-dip galvanized as requested |
