US$80.00-110.00
|
1 Set
(MOQ)
|
Basic Info.
Model NO.
AC hose Crimper
Customized
Non-Customized
Automatic Grade
Automatic
Product Name
Hydraulic AC Hose Crimper
Type
Hand Hydraulic Hose Crimper Kit
Application
Auto Air Conditioner AC Hose Crimper
Transport Package
Packed in Seaworthy Cartons
Trademark
STRONGFLEX; OEM brand
Product Description
A/C hose crimper
Product Description
Crimping range | 3/8 - 7/8'' |
Stroke | 15mm |
Core Components | Gear, pump |
Dies set | 114 mm |
Opening | 7sets |
Crimping time | 10s |
Die number | 15.19.23.26: length-60 mm 31.3641: length-70 mm 4755.60: length-80 mm |
Gross Weight | 6.7KG |
Complete Die Set Assembly (7 pc. set) | 71500-6 Die Set - #6 ( 5/16" ), Die Set - #8 (13/32" Reduced Barrier)71500-8 Die Set - #8 ( 13/32" )71500-10 Die Set - #10 ( 1/2" )71500-12 Die Set - #12 ( 5/8" )71500-6SRB Die Set - #6 ( 5/16" Reduced Barrier)71500-10SRB Die Set - #10 ( 1/2" Reduced Barrier)71500-12SRB Die Set - #12 ( 5/8" Reduced Barrier ) |
For Standard Hose Die SetPurple Set- 6 (5/16 inch)
Red Set - 8 (13/32 inch)
Yellow Set - 10 (1/2 inch)
Green Set - 12 (5/8 inch)
For Reduceds Barrier Die Set
Black Set - 6SRB (5/16 inch)
Purple - 8SRB/ 6 (13/32 inch)
Orange Set - 10SRB (1/2 inch)
Blue Set - 12SRB (5/8 inch)
Note: 8SRB and 6 is the same dies, with purple color
Easy to Use
1. Cutting The Hose
2. Dismantling pins
3. Slect correct dies
4. Insert dies
5. Turn body clockwise
6. Crimping the hose
7. Release the handle
8. After Crimping

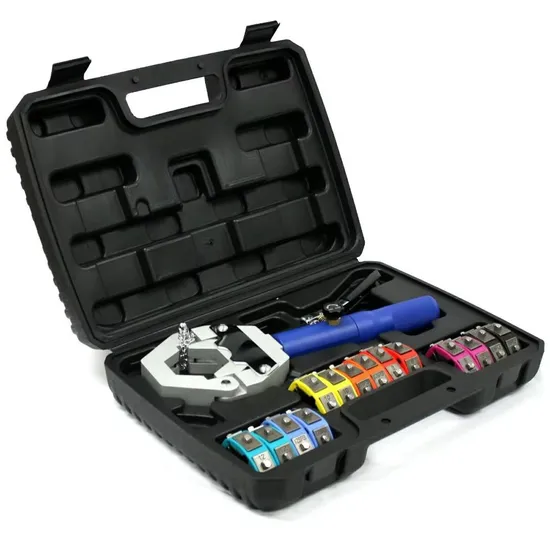

Package Includes:
1 x Hose Crimper
7 x Die Set
1 x Cutter
1 x Universal Manual
1 x Molded Box
1 set seal rings
A/C hose crimper kits parts: 1. Mould Seat for put moulds; 2.Swithch to control oil in and out; 3. The oil cylinder core is the main power component; 4. Make sure the activity pin is fiexed before working on the tool; 5. Piston is the main output component; 6. The handle is non-slip and beautiful
Certifications
Packaging & Shipping
Packing: Wooden pallets
Feedback
Company Profile
FAQ
1. Q: What is your terms of packing? A: Standard plastic/woven belt wrap or wrapped according to the customer's requirement2. Q: Can you produce according to the sample? A: Yes, OEM service available. We can produce by your samples or technical drawings.3. Q: What is your sample policy? A: Samples available if we have ready part in stock, shipping cost is on buyer's side.4. Q: How do you guarantee your quality and what after-sale service do you have? A: Our factory follow the quality standard in every producing process. Any quality problem within 3 months after purchase, we are responsible for it.5. Q: How long does my order take to be delivered? A: It generally takes 5-30days, depends on the order.
