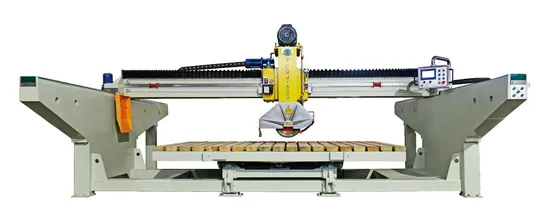

XDQJ 600B (I) Whole Bridge Automatic Cutting Machine

Product Description

The infrared Bridge cutting machine is integrated structure, no need to build concrete foundation. this machine is mainly used for cutting and processing marble slabs, granite slabs, artificial stone slabs, quartz stone slabs. it has following advantages: (1) convenient to transport and install(can be loaded in 20 GP container) (2) the user can install and debug this machine by self. After completed the installation,can keep the accuracy same as before delivery. especially suitable for customers and traders who want to save the fee of installation.
The bridge cutting machine consists of crossbeam, spindle box, lifting components, worktable parts, PLC control system, hydraulic system ,infrared ray unit and automatic lubrication system
Feature: 1,crossbeam is made of cast iron, it will be more durable and stable.
2,Worktable can rotate 0-360°and locate every 45 degree,can tilt 0°-83°
3,Hydraulic system is used in the worktable tilting and rotating.
4,AC contactor ,inverter,breaker,touch screen and PLC adopt Schneider brand. human-machine interface is easily operated and fully automatic processing as operator entered parameters
5,Equipped with infrared ray to exactly locate slabs
6,The forward and backward movement of crossbeam is equipped with magnetic grid ruler to ensure high processing precision.
7,This machine has an automatic lubrication system. Can set time to oil for the blade lifting parts.

Working principle:
The crossbeam move forward or backward by asynchronous motor, it is controlled by frequency converter(its stroke:2.3meters). The spindle is driven by main motor with belt transmission and then have the blade rotated. The blade component move left or right by asynchronous motor with frequency converter for adjusting feed speed(its stroke:3.5meters) Worktable can rotate 360° and locate every 45 degree by hydraulic system transmission.

Technical parameters:

Parameters	XDQJ600B(I)
Blade Diameter	Φ350-Φ600
Worktable Size	3200×2000mm
Max Transverse and Longitudinal Cutting Distance	3200mm
Maximum Travel Of The Cutter Lifting	300mm
Worktable Tile Angle	0-83°
Cutting Thickness	0-180mm
Main Motor Power	15KW
Water Consumption	4m³/hour
Overall Dimension	5800×5000×3000mm
Total Power	20KW
Total Weight	6T

Schematic Drawing:
Electric Cabinet& Operation Panel Photos :
Exhibition: FAQS:
1) Payment:
30% of total value (down payment)for placing an order, we start to produce the machine→70% (balance payment)before shipment
2) Delivery time:
The machine can be shipped within 15 workdays when received down payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and The man-made accident and the Lightning , Flood ,earthquake , wrong voltage are not covered by the warranty.
4)How about our service?
1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time.
2. Technical support 24 hour on line.
