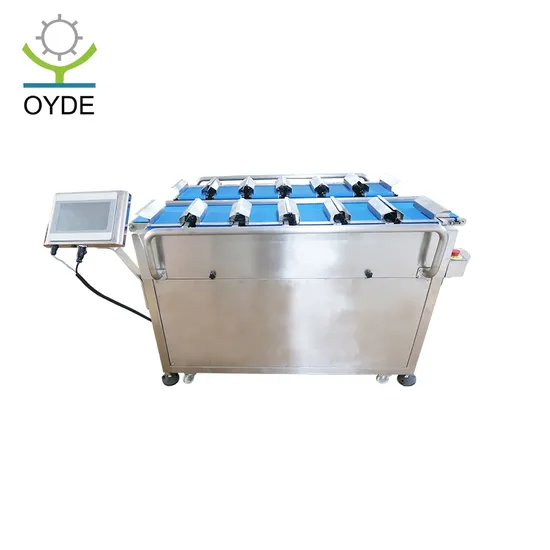

Oyde Automatic Intelligent Custom 12 Head 14 Head 16 Head Belt Target Combination Weigher Machine Weighing Scale Conveyor Belt Multihead Weigher for Food Meat

Product Description

Product Description
Technical characteristics:
1.Functions include combination by weight , priorit y combination , automati c re-calculation ,scal e self- check, setting combination times, automatic zero-point correction, and one-key peel removal.
2.Belt and scale platform can be disassembled for easy cleaning.
3.It is equipped with IP65waterproof, sus304 material and dust proof design.
4.A warning reminder can be set when the unit weight exceeds the set specifications.
5.weight distribution function:The system can freely set a specific number of hoppers for forced weight distribution.
Equipment Advantages:1.The high precision and stability of the weighing system ensure rapid computation.
2.The equipment is equipped with a forced weight distribution function. Depending on the actual operating position and the number of products to be forcibly distributed, you can set the position of the weighing buckets for forced distribution. The positions are not fixed and can be set randomly for easy operation.
3.Limited sensors are installed on the weighing buckets to prevent damage to the sensors due to excessive weight on the scale pan to reduce the failure rate and lower operating costs.
4.The equipment is equipped with foot step s witch, allowing for manual and automatic mode switching as needed.
5.The equipment assembly is convenient, fast, easy to operate and clean.
Applicable Scope:
1.Fruit weights, such as apples ,pears, etc.
2.poultry weight, such as chicken wings, chicken legs, etc.
3.vegetable combinations, such as potatoes, cucumbers, etc.
4.seafood weights, such as sea cucumber, abalone, clam, etc.
5.cooked meat products, such as various braised poultry products.

Product name	Intelligent high-speed weight distribution scale
Model	OYDE-ZHC-012
production capacity	10-40 /min
Tolerance Range	1g
Removal Accuracy	98 percent
Material	SUS304
scale Heads	12
waterproof Grade	IP65
Equipment size	L2150mm*w1300mm*H1000mm

Name	OYDE High Stability Easy Maintenance Intelligent Factory Frozon Chicken Fruit Vegetable 14 heads 16 heads 20 heads belt Electric Weighing Belt Combination Weigher Scale conveyor Belt combination scale
Model	OYDE-ZHC-012	OYDE-ZHC-014	OYDE-ZHC-016	OYDE-ZHC-018	OYDE-ZHC-020	OYDE-ZHC-024
Number of scales	12Heads	14Heads	16Heads	18Heads	20Heads	24Heads
Voltage	AC 220V 50Hz(Customized)
Weighing range of one platform	10-1000g
Accuracy	±0.5g-±5g
Weighing sensor	HBM
Control Module	PLC
Single Platform Size	300mm*180mm(Customized)
Combined Weight	200-5000g
Weighing Accuracy	±0.5g	±1g	±2g	±3g	±4g	±5g
Max Working Speed	20-40BPM
Equipment Material	SUS304 Stainless Steel
Trademark	OUYADE
Origin	Qingdao, China
Production Capacity	500 Sets/Year
Working Method	The belt-driven weight sorter conveys materials via a conveyor belt,where weight sensors measure the real- time weight of the materials as they pass through the weighing station.The control system,upon receiving this data,performs calculations to determine which category the material meets.At the corresponding grading gate,it automatically opens the diverting arm and directs the material to the appropriate category.

Company ProfileQingdao Ouyade Precision Weighing Equipment Co., Ltd. was established in 2015 and is a leading intelligent precision weighing solution provider in China.
Mainly engaged in the research and development and application of products such as weight sorting machines, automatic packaging equipment, intelligent weighing and automated production lines.
It has obtained more than 20 software copyrights and more than 40 patents, and has been rated as a national "high-tech enterprise" and "Qingdao Specialized and New Enterprise".
We have more than 20 technicians specializing in automation research in the precision field, and have experience in technical research and development and production of various intelligent production lines.
We adhere to the business philosophy of "integrity and customer first" and the development concept of "innovation and pursuit of excellence" to continuously create value for customers to meet the differentiated needs of different customers around the world.
