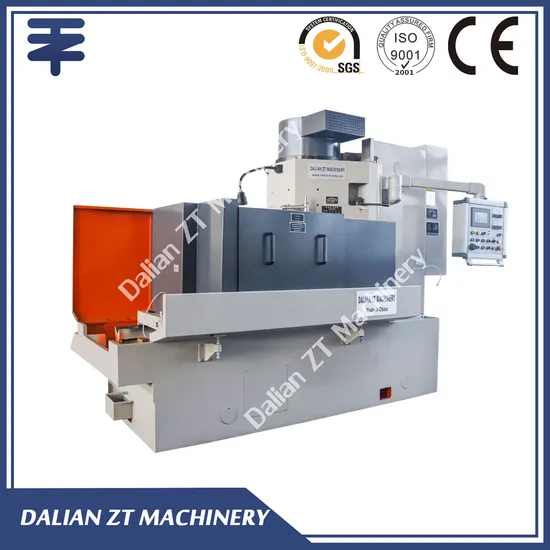

Strong (Cylindrical) Vertical Surface Grinding Machine with Worktable Dia. 1250mm

Strong (Cylindrical) Vertical Surface Grinding Machine with Worktable Dia. 1250mm

US$35,000.00-45,000.00 1 set (MOQ)

Basic Info.

Model NO.
M74125H
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Surface Grinding Machine
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Worktable Diameter
1250mm
Worktable Speed
5-20rpm
Max, Loading
1500kg
Max. Workpiece Size
Dia.1250X H320mm
Transport Package
Wooden Case
Specification
45kW
Trademark
Dalian ZT Machinery
Origin
China
HS Code
8460191000
Production Capacity
1000 Sets/Year

Product Description

Product Description
The grinding range is from Φ500mm to Φ1600mm. is a high-efficiency grinder with round electro-magnetic worktable and vertical wheelhead, with its wheel end-face for flat-surface grinding, so it is used for rough-grinding of stock or rapid-grinding for moderate accuracy, suitable for batch production workshop. If fine-grit wheel is provided, the machine can also be applied for grinding higher finish and higher accuracy workpieces such as bearing rings, piston rings etc. Accordingly, this machine is suitable for grinding in automobile, tractor and bearing industry.
Item M74125G M74140G M74160G
Worktable diameter 1250mm 1400mm 1600mm
Grinding head speed 740rpm 740rpm 740rpm
Worktable speed 5-20rpm 5-20rpm 2-15rpm
Max. swing diameter of workpiece 1300mm 1500mm 1700mm
Worktable movement 560mm 770mm 900mm
Total machine power 53(63)kW 71kW 96kW
Max. loading of worktable 1500kg 2000kg 4000kg
Grinding wheel size (OD*ID*H) 650x570x150mm
Segment tool size (LxWxH) WP150x80x25mm WP150x80x25mm WP150x80x25mm
Grinding head motor power 45(55)kW 55kW 75kW
Roughness of machined surface Ra0.8 Ra1.25 Ra1.25

Standard accessories:
Coolant tank;
Coolant pump;
Cable;
Wrench;
Machine wedge; Detailed Photos
Packaging & Shipping
FAQ
1. MOQ
1 set
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price. Customer's Visiting
