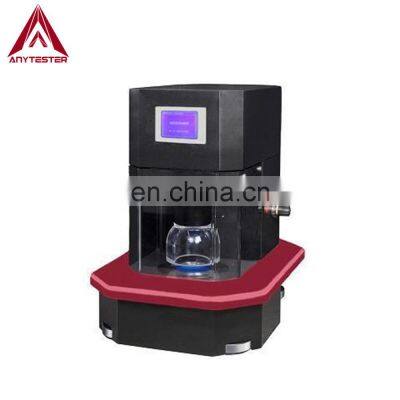

ASTM D3786 Fabric Pneumatic Bursting Strength Tester with Touch Screen Control

Product Description

Product Description
Product Description
HY032P Pneumatic Bursting Strength Tester is used to determine the bursting strength of knitted fabrics, nonwovens, paper and board by application of a pneumatic load under a rubber diaphragm of a specific area.Test principle:Through the circular clamping the sample holder can be extended in the diaphragm, the gas pressure applied below the diaphragm, the diaphragm and the sample expansion. Rate of increase has been constant pressure until the sample burst, measured burst strength and burst dilation.
Standard

ASTM D3786-6 (pneumatic)	ISO13938.2	GB/T 7742.1
Next 22	BS 4768edana 80.4-02	WOOLMARK TM 29
Note: For more standards, please contact us

Specification

Model	HY032P
Specimen holder	7.3 cm2（Φ30.5mm）, 50 cm2（Φ79.8mm）interchangeable
Pressure range	0~1.2MPa
Resolution	0.002MPa
Pressure accuracy	≤±0.2% F.S
Max. bursting height range	75mm
Bursting height accuracy	±0. 02mm
Pressure adding rate	10 ~ 500ml/min
Flexible diaphragm thickness	≤2mm
Test speed	20ml/min～600ml/min settable
Power supply	AC220V, 50Hz, 800W
Dimensions	600×4 00×530mm
Weight	200kg

Details & Features
★ Mcrocomputer control, LCD display, building-in software, touch screen control★ Air power, high cleanliness
★ Special design clamp to hold sample firm
★ With analog type pressure meter to display the pressure applied on the specimen
★ With printer interface to print test report
★ Stepless settable test speed can be selectable in one machine
★ Adopt 85% glycerin as pressurized medium
★ With building-in LED light to observe test process
★ Professor pc software to show test result including bursting strength, bursting pressure, bursting height and bursting time etc.
★ 4 test models selectable: constant bursting speed, constant pressure, constant expansion rate
★ 6 test units changeable: KPa、Kgf/ cm2、atm、mmHg、lb/in2
★ 4 test area selectable and interchangeable, so it’s easy to meet the request for more standard
★ Imported diaphragm from James Heal
★ Nice appearance, easy to operate
