7.5kw Rotary Screw Air Compressor From China

7.5kw Rotary Screw Air Compressor From China

US$1,899.00-2,999.00 1 Piece (MOQ)

Basic Info.

Model NO.
WBS-7.5A
Lubrication Style
Lubricated
Cooling System
Water Cooling
Power Source
AC Power
Structure Type
Closed Type
Installation Type
Stationary Type
Type
Twin-Screw Compressor
Key Words
Air Compressor
Working Pressure
7-12 Bar
Voltage
380V/50Hz or Customized
Transport Package
Wooden Case
Specification
890*560*840mm
Trademark
WINDBELL
Origin
Henan, China(Mainland)
Production Capacity
3000unit/Year

Packaging & Delivery

Package Size
1000.00cm * 900.00cm * 900.00cm
Package Gross Weight
340.000kg

Product Description

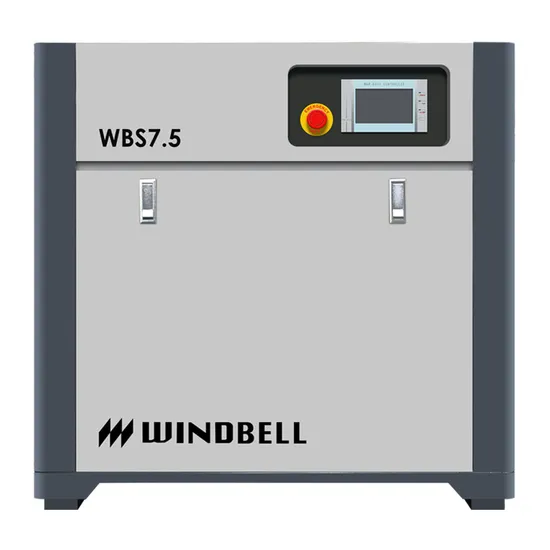

7.5Kw Rotary Screw Air Compressor From China
Product Description
The electric screw air compressor is equiped with one 7.5kw electric motor with free air delivery of 0.8-1.2m3/min at the pressure of 7-12 bar. It is applicated for industy of Machinery , Chemical , Electric Power, Cement, Furniture, Construction Material...This range of compressor is equiped with name brand airend(screw) ,centrifugal cooling fan and touch screen controller, with direct drive, dust proof, sound proof design. VSD type is also available for this model , it can save energy of 30-35% , it can save more cost for enprise owner.
Technical Specifications
Airend Working pressure Bar 7-12
Free air delivery m3/min 0.8-1.2
Compression stage 1
Electric motor Power KW 7.5
Working voltage V/HZ 380/50 or Customized
Insulation F
Protection grade IP54
Energy Grade IE2
Starter Direct
Whole compressor Driven Direct
Separator capacity L 7
Lubrication capacity L 6
Cooling method Air or Water
Outlet G3/4
Dimension mm 890*560*840
Weight kg 400
Product Details
Ceritifications
Company Information
Windbell Co. Ltd. was established in 2006. It is a high-tech company mainly producing Screw Air Compressor.Located in Zhengzhou National High and New Technology Industries Development Zone, the company has more than 100 employees equipped with 50 advanced testing machines working in the plant area of 20000 square meter. A high profile R&D team with experience in developing products with GHH and Rotor, has more than 20 patents granted. The company can produce more than 4000 Air Compressor every year.
We believe that without an advanced quality management system you cannot make high quality products. With ISO9001 and ISO14001 certifications, the company aims to be a pioneer in offering consumers efficient, energy-saving, and environment-friendly solutions in the application of air compressor. Based on its R&D output, the company has successfully applied its solutions to the field of mining, tunneling, outdoor construction and its technology also facilitates the production of medical oxygen generators and textile equipment. The Screw Air Compressor are widely sold to Southeast Asia, Central Asia, Middle East, Africa, and South America...
FAQ
Q1: Why customer choose us?
A: WINDBELL MACHINERY CO., LTD., with 13 years old history, we are specialized in Screw Air Compressor. We warmly welcome your small trial order for quality or market test.
Q2: Are you a manufacturer or trading company?
A: We are professional manufacturer with big modern factory in Zhengzhou,China. Both OEM & ODM service can be accepted.Pls CheckOur Company Profile.
Q3: What's your delivery time?
A: Generally 15 to 20 days, if urgently order, pls contact our sales in advance.
Q4: How long is your air compressor warranty?
A: One year for the whole machine and two years for screw air end, except consumble spare parts.
Q5: How long could your air compressor be used?
A: Generally, more than 10 years.
Q6: What's payment term?
A: T/T, L/C, Western Union, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Q7: How about your customer service?
A: 24 hours on-line service available. 48hours problem sovled promise.
Q8: How about your after-sales service?
A: 1. Provide customers with intallation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
