Advanced High Speed 20000rpm 3/4/5axis CNC Machine Center for Metals Processing

Product Description

Hot Sale Alert: Experience Unmatched Precision and Unleash Unrivaled Power with Our High-Efficiency Vertical CNC Milling Machine
Product Description

Product Parameters

Model		TZ-1000B
Worktable size L*W	(mm)	1100x500
Work table Max. loading	kg	450
T-slots size (N×W×D)	mm	5x18x90
X/Y/Z axis travel	mm	1000/500/420
X/Y/Z axis feed speed	m/min	48/48/48
X/Y/Z axis motor	kw	2/2/3 kw
X/Y/Z axis linear Guide	mm	35/35/35
Spindle taper		BBT30
Max. spindle speed	rpm	20000
Spindle motor power	kw	5.5
Distance from spindle nose to workbench	mm	150-570
A.T.C capacity	pcs	21
Positioning accuracy (X/Y/Z)	mm	±0.005/300
Re-positioning accuracy(X/Y/Z)	mm	±0.003/300
Machine weight	kg	4800
Machine size (L*W*H)	mm	2700*2500*2350

Main Parts of Equipment
(1) Base Our robust, large-span heavy base is expertly designed with guide rail specifications exceeding industry norms by an impressive 20%. This meticulously engineered base efficiently disperses gravitational forces, augmenting our machine's processing capabilities and ensuring unwavering stability, even under substantial workloads. The intelligently designed short saddle overhang significantly enhances dynamic accuracy. Furthermore, the Y-axis motor is strategically positioned at the rear, reducing the operator's reach from the table. This design is exceptionally tailored for handling workpieces with ease, thus enhancing overall processing convenience.
(2) Uprights (a) Our cutting-edge herringbone column design offers unparalleled stability and ease of maintenance, setting it apart from traditional single-column structures. (b) Our state-of-the-art herringbone structure bed design, along with innovative gold protection and efficient chip removal systems, effectively prevents sheet metal water leakage during installation, thereby safeguarding the mechanical structure. (c) High-strength screws are employed for securing, which substantially increases column rigidity, minimizes vibrations during operations, and guarantees exceptional stability even during demanding cutting tasks. (d) By fortifying the shaft's slint-bone structure, we significantly enhance bed rigidity, leading to superior processing stability and prolonging the machine tool's service life.
(3) Headstock
By optimizing the contact ratio between the headstock and column, along with incorporating a short nose-end Taiwan spindle, our machine boasts extraordinary chip cutting abilities. This remarkable tool is designed to flawlessly perform drilling, milling, tapping, boring, and other intricate processes with unmatched precision.
(4) Precision spindle with high precision, high performance, and high stability (a) Crafted with precision in Taiwan, our spindle set features an ingeniously engineered main shaft grab tool mechanism. The inclusion of a butterfly spring on the main shaft applies tension to the tool handle's pull nail through a four-jaw broach mechanism, ensuring a perfect match with the main shaft's taper hole, thereby facilitating a flawless grab tool operation. (b) The low inertia spindle motor is engineered for optimal performance, delivering rapid acceleration times that enhance tapping speed and quality. The spindle's direct drive is equipped with a spindle orientation function, ensuring exceptional performance.
(5) Machine tool protection
The lathe bed guide rail (XY axis) is crafted from durable stainless steel telescopic sheet metal, while the column guide rail (Z axis) benefits from advanced organ type and armor type protection. The machine's fully enclosed design effectively prevents iron filings and coolant from escaping, ensuring a safe and comfortable work environment for operators.
(6) Power distribution Beyond superior mechanical design, Taijing machine tools emphasize outstanding electrical design. Our CNC system is equipped with a revolutionary optical fiber communication mode, significantly boosting data communication speed and simplifying wiring complexity, resulting in an impeccably organized electrical cabinet.

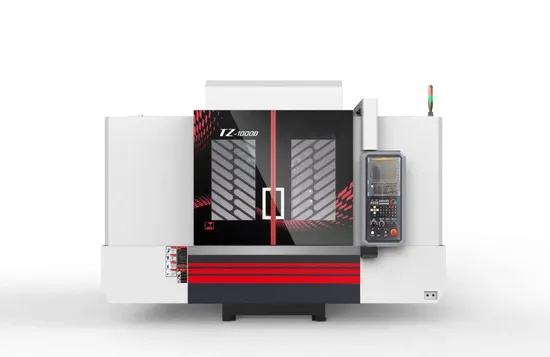

Picture of the machine

Main Parts		Branch/ Origin
CNC System		M80B Mitsubishi/ Japan
Spindle and three-axis servo motor		Mitsubishi/ Japan
Spindle		Dejiu TAIZ/ Taiwan
Ball screw		Yintai or Shangyin/ Taiwan (C3)
Screw bearing		P4NSK/ Japan
Rail		Yintai or Shangyin/ Taiwan (P)
A.T.C capacity		TAIZ or Deda/ Taiwan
Body casting		High density and high strength resin sand cast iron
Coupling		R+W\NBK / German
Electrical components		Franch
Handwheel pulse		East Test/Internal Security Control / Janpan
Pneumatic components		Taiwan AirTAC/ Japan SMC

Anoher Advantages
• Immerse yourself in a production environment like no other with our machine. It is meticulously engineered to create optimal processing conditions, boosting efficiency and elevating output quality to extraordinary levels.
Our cutting-edge imported machinery is equipped with state-of-the-art horizontal and vertical machining centers, CNC boring machines with precision rotating tables, and advanced gantry guideway grinding machines. This technology ensures workpiece accuracy of the highest standard, enhancing assembly precision and prolonging accuracy durability, thus reinforcing our esteemed standing as industry frontrunners.
• Cutting-Edge Detection Techniques
Our commitment to precision is unwavering, employing the latest laser technology for meticulous testing and accurate calibration of positioning accuracy. We stringently adhere to the renowned German VDI3411 inspection standards, conducting five thorough tests to ensure unparalleled precision.
Prior to dispatch, each machine tool undergoes exhaustive processing evaluations. This rigorous scrutiny ensures they consistently exceed actual processing accuracy requirements, delivering performance that not only meets but surpasses even the most stringent expectations.
Product sample
• This state-of-the-art CNC machining center is a marvel of engineering excellence, meticulously crafted to blend milling, drilling, and tapping functionalities into a seamless operation. Boasting unparalleled versatility, it ensures flawless and efficient execution across a multitude of tasks, elevating your operational capabilities.
• Expertly designed for CNC machining across an extensive range of metal profiles, including aluminum, steel, copper, and even non-metal materials, this exceptional machine dramatically enhances your production capabilities. It propels efficiency and fosters innovation, making it an indispensable asset for any manufacturing process.
• Ideally suited for a diverse array of flourishing industries such as 3C electronics, rail transportation, aerospace, and linear module guide rails, this machine opens up new vistas in innovation by consistently delivering precision, reliability, and exceptional performance. It is your key to unlocking limitless potential.
Packaging & Shipping
•Uncompromised Protection: Our expertly designed packaging solutions are crafted to ensure that the High-Performance CNC Machine for Milling Hard Metals and Alloys, featuring a BBT30 Taper, arrives at your doorstep in immaculate condition. We prioritize meticulous care to safeguard your valuable investment, guaranteeing it is delivered without a single blemish.
•Robust Structural Stability: Engineered with precision, our packaging is designed to endure the rigors of transportation, providing unparalleled stability. This ensures that the structural integrity of your CNC machine is meticulously maintained, keeping it secure and intact as it makes its way to you.
•Eco-Friendly and Fully Recyclable: With an unwavering commitment to sustainability, our packaging materials are thoughtfully crafted to be eco-friendly and completely recyclable. This approach ensures a minimal environmental footprint while offering outstanding protection, seamlessly combining ecological responsibility with exceptional performance.
Professional Team
FAQ
1. What are the Payment Terms?
A: T/T, 40% initial payment when ordering, with the remaining 60% balance payable before shipment.
2. What are your trade terms?
A: We accept FOB, CFR, and CIF trade terms.
3. When is the delivery time?
A: For standard machines, we can prepare the machine within 30 days. Special machines may require more time. Please place your order based on our delivery timeline.
4. What is your minimum order quantity and warranty?
A: Our MOQ is one set, and we offer a one-year warranty.
5. How are the machines packaged?
A: The machines are securely packed in standard wooden cases.
6. How can I choose the most suitable machines?
A: Provide us with your specifications, and we will recommend the best model for you. Alternatively, you can select the exact model yourself.
You can also send us your product drawings, and we will select the most suitable machines for your needs.
