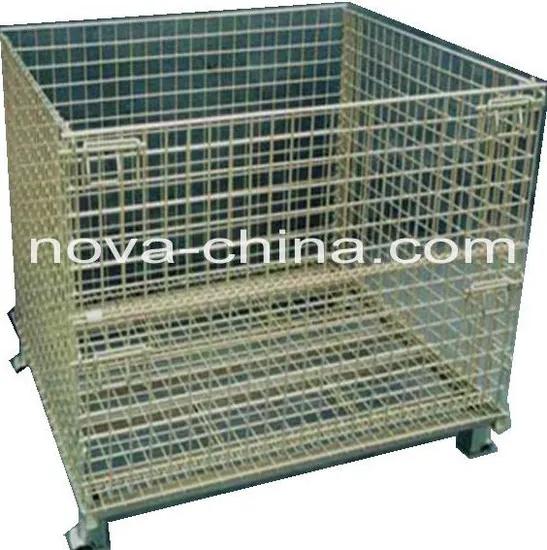

Heavy Duty Wire Mesh Container
Basic Info.
Model NO.
Customized
Load Capacity
1200kg
Folded
Folded
Mesh Spacing
50mm×100mm
Wire Diameter
5mm
Feet Height
120mm
Scale
Heavy Duty
Wire diameter
5.0/6.0
Welding
Full Welding
Certificate1
ISO9001
Certificate2
ISO14001
Certificate3
ISO10012
Capacity
300-1500
Material
Steel
Color
as Needed
Surface Treatment
Power Coating
Transport Package
Special Package for Export
Specification
CE
Trademark
NOVA
Origin
China; Nanjing
HS Code
73269090
Production Capacity
6000 Ton/Tons / Month
Product Description
Product DescriptionSteel Foldable Wire Pallet; Wire Container; Wire cage; Warehouse cage
Structural feature:
This kind of mesh box can be folded freely, steady and reliable;
There is a variety of specifications for choosing;
Protecting goods from damages;
Foldable structure so as to save container space.
Any further questions you can contact me
| Model | Outside dim (mm) | Wire Dia | Grid size | Leg height (mm) | Volume | Number of Stacking | Loading Capacity (KG) | ||
| L | W | H | (mm) | (mm) | (m3) | ||||
| A-3 | 800 | 600 | 640 | 6 | 50*50 | 100 | 0.22 | 4 | 800 |
| B-3 | 800 | 600 | 640 | 6 | 50*100 | 100 | 0.22 | 4 | 600 |
| A-5 | 1000 | 800 | 840 | 6 | 50*50 | 100 | 0.52 | 4 | 1500 |
| B-5 | 1000 | 800 | 840 | 6 | 50*100 | 100 | 0.52 | 4 | 1000 |
| C-5 | 1000 | 800 | 840 | 4.8 | 50*50 | 100 | 0.52 | 4 | 500 |
| A-7 | 1200 | 1000 | 890 | 6 | 50*50 | 100 | 0.84 | 4 | 2000 |
| B-7 | 1200 | 1000 | 890 | 6 | 50*100 | 100 | 0.84 | 4 | 1000 |
Jiangsu NOVA Logistics System Co.,Ltd. It was founded in 1997. After years of development, it has become one of the most well-known racking suppliers and logistics system integration trader in China, being recognized as one of the leading manufacturers in logistics field.
Over the past years, we have carried out thousands of big logistics projects, impressed our customers a lot with our quality products and after sales service. We have been pointed as the logistics suppliers for quite a few famous enterprises such as TOYOTA, WAL- MART,SIEMENS,TOSHIBA,BOSH,LG and so on.
Pls feel free to contact us.Thanks.
