Top Sale Waste Pet Bottle Recycling Washing Crushing Line

Product Description

Top Sale Waste PET Bottle Recycling Washing Crushing Line
Product Overview
Description Of PET bottle recycling washing line:
This Retech series plastic PET bottle washing line is mainly used to recycling the waste PET bottles, water bottles, cola bottles, PET sheet and PET packing containers. The plastic PET recycling line can easily remove the labels, caps, rings, glue, dirties and other impurities, finally you will get ideal PET clean flakes. The production line can be placed in a straight line,also we can install the line as "U" or "L" shape.All your requirements of the plastic PET washing machine can be customized.
Material Processed:
Product Description
Now I introduce our PET bottle washing line's process simply. If you need more details, pls contact with me .

No.	Item name	Function
1	Belt conveyor	Loading material
2	Label remover by wind or water	Remove the label from bottle
3	Manual sorting table	Manual sorting out different color and non-PET bottles, remove remain labels
4	Belt conveyor	Loading material
5	Wet crusher	Crushing bottle into flakes
6	Screw loader	loading material
7	Floating washing tank	Washing flakes remove caps/ringg
8	Screw loader	Loading material
9	Dewatering machine	Washing flakes remove dirty and prevent the dirty goes into hot washing tank
10	Hot washing tank	Washing off glue/oil and dirty with hot water and chemical
11	Screw loader	Loading material
12	Horizontal dewatering machine	Tke out chemical water/glue/dirty from flakes
13	2nd floating washing tank	Washing cleaning flakes
14	3th floating washing tank	Washing cleaning flakes
15	Horizontal dewatering machine	Takes out dirty and remove water
16	Zig-Zag air classifier	Remove dust/fines/labels
17	Silo	Storage material
18	Electric control panel	Control the full line
Final product quality		Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 10-18mm Metal content: max.20ppm Floatable contamination: less than 200ppm Total impurity: 100-320ppm

Detailed Photos
Label remover by wind
Function: removing the labels from bottles. About 91%-95% of the labels will be scraped off.

Crusher with water

Function: Prewashing the PET bottle simply. Mainly it crushed the whole PET bottle into flakes, its size is about 12mm. Also you can customized.
Floating washer with scew conveyor
Function: PET bottle flakes will sink down at the bottom of floating washer. Through the screw loader convey to next step.
Hot washer of PET bottle washing line
Function: You can add caustic soda or other detergents to remove oil and dirties off PET flakes.
Dewatering machine
Function: This kind of dewatering machine is high efficency and durable. The Moisture after this machine is less than 1%. Do not need add heating system again, saving energy.
"Zig-zag" label separator
Function: Removing label flakes and dust. To guarrante the final label content ≤1%.

Our Advantages
1. Recycled material: Total impurity content ≤320PPM, Moisture content≤2%
2. Production Capacity: 300-3500Kg/h
3. Plan design according to Customers' requirements.
4. Simple design, user-friendly operation.
5. Lower investment cost for a high quality and durable machine.
6. Low energy consumption, High output capacity.
7. Usual delivery time: 60 days.
8. Engineers are available to do commissioning work abroad.

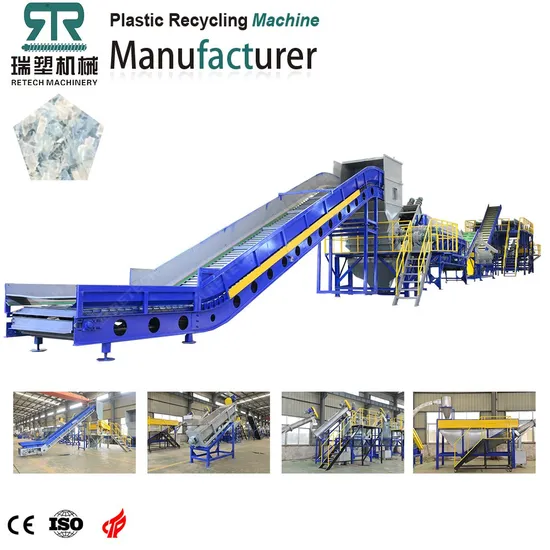

Product picture

Product packing
For fragile cargo we will packing by Wooden box. For the Full container loading we are packing the machine by film and some on pallet accordingly. We can shipping the goods by air or by sea. We will send pictures of cargo loading to our client to check and keep recording. Loading container
Sales Service
Service before sale :
1, 24 hours online .Your inquiry will be quick reply by email . Also can go through all questions with you by any online chatting tools (Wechat ,Whatsapp ,TradeManager ).
2,Professionally and patiently introduction,details, pictures and working video to show machine
Service on sale:
1,Test every machine and inspect the machine seriously.
2,Send the machine picture which you order , then packing it with stretch film or standard export wooden box after you confirm the machine is ok .
3,Delivery: Will tell you the shipping time and arrival time. Sending all original documents to you by Express For Free before the goods arrived at seaport.
Service after sale:
1, Free insurance for goods by sea.
2, 24 hours online to solve any problem . Supply you English manual book and technical support , maintain and install video to help you solve the problem, or dispatch worker to your factory
