Gstoyo Brand Chain Block Hoist with Grade 80 Load Chain

Gstoyo Brand Chain Block Hoist with Grade 80 Load Chain

US$35.00
1-299 Pieces
US$32.00
300-499 Pieces
US$30.00
500+ Pieces

Basic Info.

Model NO.
VC
Application
Lifting Platform, Small Crane
Type
Chain Hoist
Sling Type
Chain
Lift Speed
<2m/min
Maximum Lifting Height
3m
Chain Falls
8
Certification
CE
Condition
New
Color
Red
Brand
Gstoyo or OEM
Load Chain
G80 6mm
Hook
Forged
Hand Chain
4.8mm
Shell
Thick
Transport Package
Wooden Case
Specification
1Ton 3Meter
Trademark
GSTOYO
Origin
China
HS Code
8425190000
Production Capacity
500PCS/Day

Packaging & Delivery

Package Size
24.00cm * 16.00cm * 15.00cm
Package Gross Weight
12.000kg

Product Description

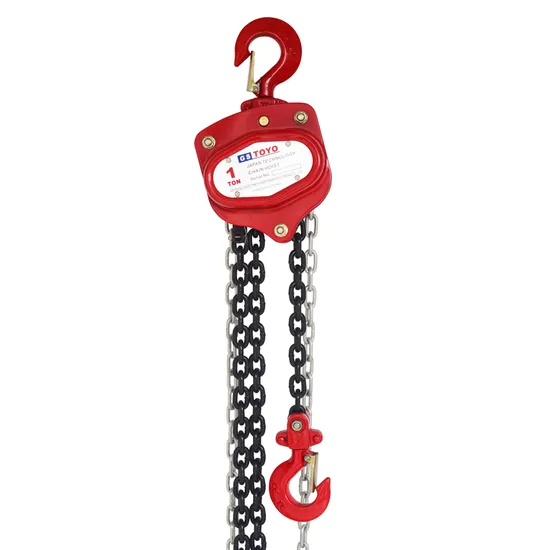

GSTOYO brand chain block hoist with Grade 80 load chain
Product Parameters
What is a Chain Block? A Chain Block (also known as a hand chain hoist) is a mechanism used to lift and lower heavy loads using a chain. Chain blocks contain two wheels which the chain is wound around. When the chain is pulled, it winds around the wheels and begins to lift the item that is attached to the rope or chain via a hook. Chain Blocks can also be attached to lifting slings or chain bags to lift the load more evenly.
How Does a Chain Block Work? A Chain Block contains a lifting chain, a hand chain and a grabbing hook. Most chain blocks are operated using electricity, but manual chain blocks can be used too. First, the chain block needs to be connected to the load via the grabbing hook. Then when the hand chain is pulled, the chain tightens its grip on the wheel and forms a loop inside the mechanism causing a tension which lifts the load from the ground.
What is a Chain Block used for? Due to its lifting capabilities, Chain Blocks are commonly used in garages where they are able to remove engines from cars easily. Because they can be operated by one person, Chain Blocks are a wonderfully efficient way to complete jobs which may have taken more than two workers to do.
Chain Blocks are also used on construction sites where they can lift loads from the higher levels, in assembly line factories to lift items to and from the belt and sometimes even to winch cars from a treacherous terrain.
Model HSC-1 HSC-2 HSC-3 HSC-5
HSC-10
Capacity(t) 1 ton 2 ton 3 ton 5 ton 10 ton
Lifting Height(m) 3 m 3 m 3 m 3 m 3 m
Test load(t) 1.5 t 3 t 4.5 t 7.5 t 15 t
No. of load chain 1 2 2 2 4
Diameter of load chain 6mm 6mm 8mm 10mm 10mm
N.W(kg) 10kg 14kg 24kg 36kg 68kg

Product Description
Real show

Company Profile
Hebei Juying Hoisting Machiney Co.,Ltd was founded in 2005, and mainly produce chain hoist, electric hoist,
mini electric hoist, hoist, lifting chain, lifting sling, lifting machinery equipment. The company has a complete
and scientific quality management system. Relately it has been vertified by TÜV Rheinland.
