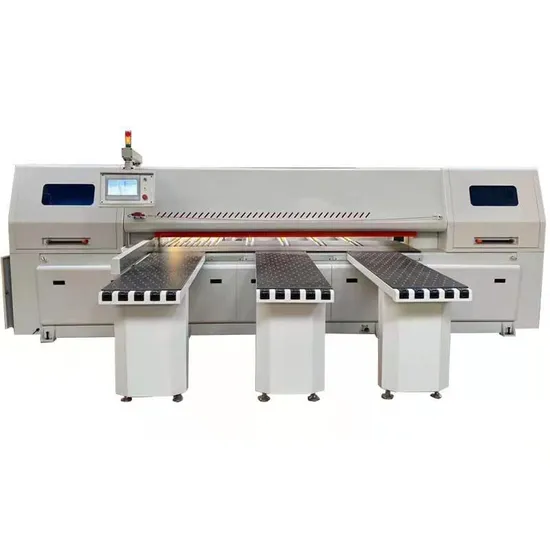

High Accuracy CNC Horizontal Computer Saw Panel Saw Cutting Machine Beam Saw Taiwan on Sale

Product Description

Product Description

Computer panel Saw Machine for Acrylic panel solid board and high precision beam saw

The key selling points of Computer Angular Saw :
1.Vertical and horizontal cutting;
2.Scoring saw independent moving;
3.Press beam safety protection;
4.Saw carriage speed 0-120m/min;
5.Max.cutting length 3300mm,max.horizontal cutting length 1800mm,max.cutting thickness 100mm;
6.It can cut solid wood panel,solid wood finger joint panel,multilayer panel,MDF panel,particle panel,compact panel,circuit panel,aluminmum panel,calcium carbonate panel,acrylic panel,PS panel etc.
Product Parameters

Saw Carriage
Maximum vertical cutting length: 3300mm;
Maximum horizontal cutting length: 1800mm;
High Efficiency
Single pc cutting or multiple pcs cutting, high efficiency.
Main steel frame
After the welding of the frame is completed, it is placed for one month, and then heat treated,
Eliminate the residual stress generated during the machining process,
Change the crystal structure inside the material,
Enhance the stability of the subject,
Afterwards, it will be treated for 6 months,
Then send to the machining center for precision machining.
Roller ConveyorRollers assist the panel moving, protect surface of the panel and prevent scratching, heavy panel is easy to move too.

Max. cutting length	3300mm	Saw carrier driving motor power	2kw*2 ( AC Sevro )
Max. horizontal cutting length	1800mm	Automatic feeding motor	2kw*2 ( AC Sevro )
Max. cutting thickness	100mm	Lifting platform motor	2kw
Main saw blade	Φ380mm(option450mm)	High-pressure blower motor	3kw*2+2.2kw
Main saw shaft diameter	Φ75mm	Side aligner motor	0.25kw
Main saw shaft rotation speed	4000rpm	Total power	61.35kw
Scoring saw blade diameter	Φ200mm	Automatic Feeding speed	85m/min
Scoring saw shaft diameter	Φ50mm	Air pressure	5-7kg/cm²
Scoring saw shaft rotation speed	5200rpm	Worktable height	960mm
Saw carriage forward speed	0-100m/min	Net weight	14300kg
Saw carriage backward speed	0-120m/min	Machine size	8000*11600*2200mm
Main saw motor power	18.5kw*2	Air floating table quantity	2
scoring saw motor power	2.2kw*2	Conveyor motor	0.75kw*2

Application
Application:
The electronic cutting saw has a wide range of uses. Because of its high rotation speed, the electronic cutting saw can be widely used in: precision casting of furniture factories, panel furniture industry, vehicle and ship manufacturing and other wood processing industries.
Processing Material:
Plexiglass, light guide plate, circuit board, large core board, MDF board, wood-based board, artificial stone, aluminum-plastic board, MDF board, MDF, flower board, ABS board, PVC board, PS board, PET board, Grating plate, artificial leather, synthetic stone, solid wood and other materials are used. It can also be used to cut hardboards such as gypsum board and laminate flooring.
