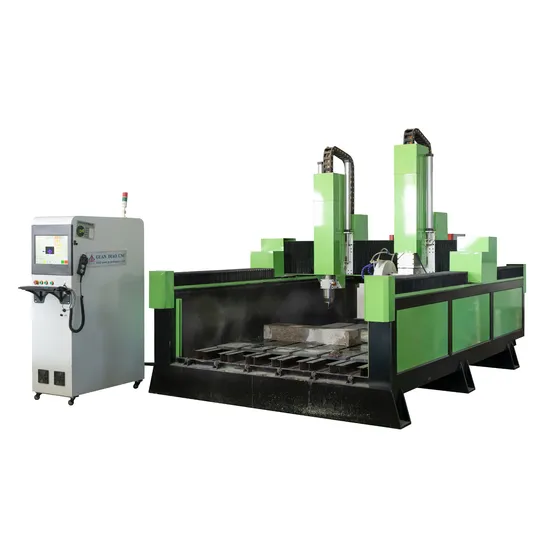

5.5kw Spindle 3D Granite Engraving CNC Stone Router for Metal Stone Acrylic Engraving

Product Description

Product Description
Machine Features:
1. Solid machine bed, high steel stability,high precision. long using life. 2. Y axis is with double motor driving, best configurations, stable process. 3. Adopting high precision rack transmission, high precision &speed. 4. CNC computer controlling, high efficiency auto process.saving too much time&cost,improving production efficiency.

Product Parameters

Model		1530 heavy-duty stone carving machine	1325 heavy-duty stone carving machine	1325 economical stone carving machine
Working size		3000*1500*300mm	1300*2500*300mm	1300*2500*300mm
Frame		Welded structure
Table surface		T-slot Table (Aluminum table + PVC)
X Y Structure		Rack and Pinion Drive,Hiwin Rail Linear Bearings
Z Structure		Ball Screw
Spindle power		3.5/4.5/5.5kw
Drive motor		Stepper/Servo
Inverter		Fuling or Sunfar
Control system		Mach3 System (Optional:DSP)
Working Voltage		380V/3PH/50HZ
Command Code		G code
Software Compatibly		Artcam/Artengraver/Type3/V9/JD paint
Packing Size		Wooden case

Detailed Photos
Water-cooled spindle special for stone
Used a high-power 5.5 kw main shaft for stone, with a maximum speed of 24,000 rpm.The four bearing rotors work at the same time,with large torque, strong power, dust proof and waterproof, and long service life.Hard and soft stone and other materials can be handled in one machine.

Saw Blade.
It can cut Marble stone Granite fast speed and more smooth. Almost no need polishing after cutting.
2 Z axis One is spindle, the other one is saw blade
High quality drag chainHigh quality line towing, clean, simple and efficient.
All Axis have the dust protect device.
It can protect the guide rail and rack from dust or crumbs. Prolong the using life of the machine..

Taiwan LNC control system.
More intelligent and easy operate,it can control the spindle and saw blade very well.
