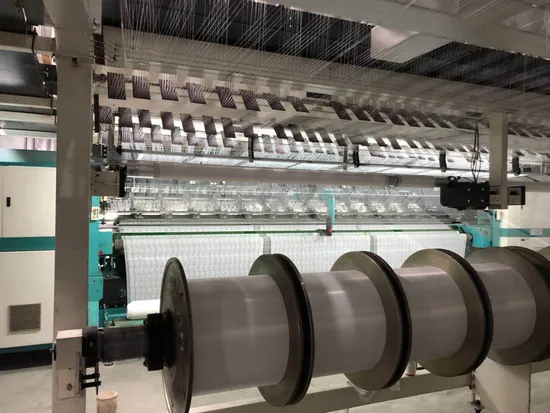

Raschel Machines for Producing High-Stretch Textiles

Product Description

Flexible easy operation and high efficiency Lace & curtain machine are the best representative technology of warp knitting. The application of string bar and electronic control makes lace & curtain machine production extremely different comparing the old chain link system. The wider and flexible bar arrangement provide the imagination for designer.
The pizeo jacquard control system makes the possibility of the long course pattern repeat. Fall plate application creates the special stereoscopic effect. The acceptance of .KMO/.MC/.DEF/.TXT files make the our Lace & curtain machine system very convenient for patterning. USB flash disk can save thousands files and transfer faster. The Cotex software adopts the scheme of high speed 64bit CPU which guarantee the data processing and calculation capability and satisfies the high speed machine requirements.
We make lace & curtain machine from 4bar to 95bar with wide width range from 134 inch to 260 inch. The concept of our lace & curtain machine is based on easy operation and high efficiency. Touch screen interface can record all the production data and fabric parameter which can be transferred via internet for better production management.

WARP LET-OFF DEVICE
EBC	electric control	standard
CLOTH TAKE-UP DEVICE
EAC	electric control	standard
BATCHING DEVICE
Electric	friction driven	standard
Batching diameter
PATTERN DRIVE
Pattern disc		standard
EL	via electric motor	optional
MONITORING & SOFTWARE
HMI	monitoring and reporting via display	standard
Cotex Suite		optional
OIL SUPPLY
Heater exchanger	heating and cooling	optional
SAFETY
Light curtain	depending on country of delivery	optional
