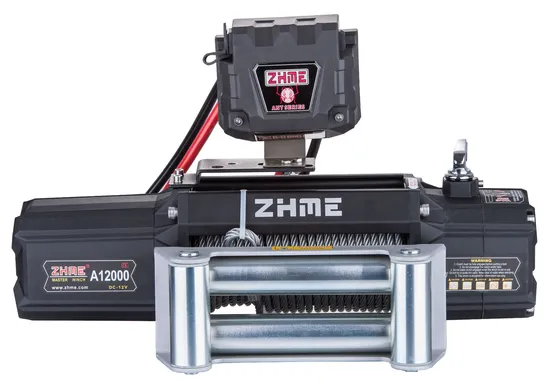

12000lbs 4WD Winch for Jeep

Product Description

ANT series
Smart appearance is suitable for various vehicles. Strong power, simple operating procedure is easily for enter lever off-roader to control the winch in hostile environment.

• Our products are of well-designed, beautiful appearance and easy to install.
• The best choice for off road enter lever off-roader.
• Popular series winches with good quality at a reasonable price.
• 12V volt high performance series wound motor for power and fast line speed.
• Fully independent and automatic braking ensures safety and reliability.
• High-efficiency, lower noise steel 3-stage planetary gears.
• Aircraft grade wire rope, or synthetic rope is optional.
• Remote switch & wireless remote control being alternative.
• Multifold mounting options including vertical over tie rod, over tie rod and over motor.

Rated line pull:	12000 Lbs (5443kgs) single line.
Motor:	Series wound 6.0 hp /4.4kw,12V DC
Gear Train:	3 stage planetary
Gear ratio:	256.:1
Clutch:	Sliding ring gear
Braking action:	Automatic in the drum
Fairlead:	4-way Roller fairlead
Wire rope:	9.5mmX25m
Synthetic rope	11mmX24m
Drum size:	2.5"×8.9"(63mm×226mm)
Dimensions:	21.5"×6.3"×7.6"( 545mm×160mm×194mm)
Mounting bolt pattern:	10"×4.5"(254mm×114.3mm)
Battery	Recommended 650 CCA minimum for winching 25 square mm,72″(1.83m)
N.W:	83.6lbs (38kgs)
	PERFORMANCE
Line speed and motor current (first layer)	Line pull	Lbs	0	4000	6000	10000	12000
		Kgs	0	1814	2722	4536	5443
	Line speed	FPM	22	12.5	9.8	6.9	5.6
		MPM	6.8	3.8	3	2.1	1.7
	Motor current	Amps	80	170	210	310	360
Line pull and cable capacity	Layer of cable				1	2	3	4
	Rated line pull per layer			Lbs	12000	9900	8300	7000
				Kgs	5443	4490	3765	3175
	Cable capacity per layer			Ft.	17.6	37	63	82
				M	6	13	22	25

Shipping Service
We can arrange you transportation, we have our own shipping and express company, or we can use your forwarder.

How to choose a ZHME Winch for your vehicle
Can't decide which winch is right for you? The best way to choose is to calculate the line pull needed for the application. To do this multiply your vehicle's Gross Vehicle Weight (GVW) by 1.5 - this will give an approximation for how big your winch should be. Typically, the first layer of rope around the drum is the max load the winch is capable of. Each additional layer deducts about 10% off the rated line pull. So for a winch rated 9,500lbs, the second layer will pull 8,550lbs, the third 7,700lbs, etc. A loss of pulling power can also be experienced when the rope isn't spooled evenly on the drum. So re-spool your winch before you go out!
