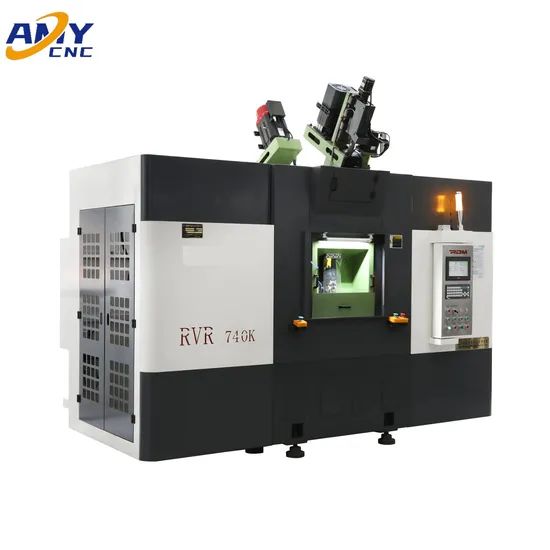

Rvr-740K Reliable CNC Rotary Transfer Solution for Efficient Brass Valve Making Lathe Machine for Metal

Rvr-740K Reliable CNC Rotary Transfer Solution for Efficient Brass Valve Making Lathe Machine for Metal

US$20,000.00-40,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
RVR-740K
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Closed-Loop Control
Numerical Control
CNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Name
CNC Machine Tool
Machine Layout
The Main Shaft Is Moved and The Tool Holder Is Fix
Body Design
Flat Bed, Cast
Spindle Servo Motor
3.7kw*2
X.Z Servo Motor
1.6kw/2kw*2
Transport Package
Packaged Into Wood Carton
Trademark
Haochen
Origin
China
HS Code
8458190000
Production Capacity
100 Sets Monthly

Product Description

Stable and accurate hydraulic hybrid waterwheel type combined tool machine
Product Description
Suitable for:
This machine tool is most suitable for processing fields: aviation equipment, optical precision parts, auto parts, electronic connectors, advanced button accessories, small valves, watch parts, threaded joints, etc. Good processing for small parts, precision parts and non-ferrous metals. Hardware parts: steel parts, stainless steel parts, copper and aluminum parts, Disk parts: precision shaft pin, shaft sleeve, spindle, ring Precision thread: high-grade thread joint, slightly dense spindle lock cap, tooth compound
Feature
Applicable to 1/4 to 1" brass ball valve, gate valve, globe valve safety valve andother valve hole reaming,tapping and machining exhibition.
One clamping can complete the valve body three direction processing, saveprocessing time,reduce labor costs,
The function of the tool of the middle hole can be opened or closad according to theprocessingrequirements.
According to actual production estimates, 6.6-9 seconds.*Power head according to the processing requirements of the workpiece,can beinstalled up to 19
The whole machine yR950/8-8 Power Group.
Product Parameters
ltem Parameter
Capability
Number of spindle 6~9Spindles
Processing materia Brass
Spindle speed Drilling spindle 1340rpm
Tapping spindie 680rpm*
Travel Drilling spindle <110mm
Tapping spindie <60mm
Control systerm (Programmable logic Controller)
Hydraulic pressure 1.5~3.5Mpa
Motor drive mode Drilling spindle/Drilling&facing spindle motors Contactor
Tapping spindle motors Contactororinverter(AC drive)
power supply AC380V/50HZ;3PhaseAC380V/S0HZ

Detailed Photos

Company Profile
Zhejiang Haochen CNC Equipment Co., Ltd. is located in Taizhou, Zhejiang, China. Our company specializes in the manufacturing of valve machines and aluminum product machines. Our main products include CNC Lathe Machines, CNC Transfer Machines, Automatic Forging Machines, CNC Machine Centers, Long Bar Feeder CNC Lathe Machines, Testing Machines, and more.
We have several engineers who are experts in structural design and possess strong product development capabilities. We provide design and manufacturing services for various types of machines and custom-structured machines for our clients.
Over the past 20 years, we have been supplying high-quality machines to many world-renowned brands in countries such as India, Bangladesh, Egypt, Turkey, Tunisia, Vietnam, Australia, the United States, and Ireland.
We look forward to establishing business relationships with everyone and hope to expand our business through joint efforts. We look forward to your inquiries.
FAQ
1. How can l choose the most suitable machines ?
A:Please tell me your specifications,we can choose the best model for you,or you can choose the exact model.You can also send us the products drawing,we will choose the most suitable machines for you.
2. Who are we?
A:We are based in Zhejiang, China, start from 2020,sell to Africa(30.00%),South Asia(20.00%),South America(10.00%). There are total about 11-50 people in our office.
3. How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final inspection before shipment;
4. What can you buy from us?
A: CNC lathe machine, CNC transfer machine,CNC milling center, CNC turn-milling compound lathe,Punching machine ball machine, assembly machine and so on .
5. What's the MOQ?
A: 1 set.
