Plastic High Speed Mixer for PVC Blending Heating Cooling Mixing Machine Mixer Combination

Product Description

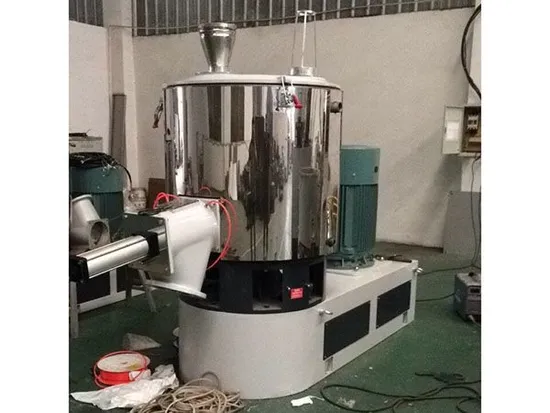

Plastic High Speed Mixer for PVC Blending Heating Cooling Mixing Machine Mixer Combination
Product Description Langbo Machinery offers heating mixer, cooler mixer and mixers combination. The heating mixers are applied for mixing, coloring and drying in the industry of plastics. The structure design of cooler mixer can be type of vertical or horizontal. Mostly dry powder raw material needs mixing before entering the extruder. The mixing unit is mainly used for the mixing and coloring of polyvinyl chloride resin (PVC), the coloring and drying of polyethylene particles, the drying before the molding and processing of hygroscopic resins such as polycarbonate, and the mixing of phenolic resins. Then, it is cooled by cooling and stirring to prevent clumping and degradation of the hot mixed material, allowing the additives in the hot mixed material to continue to penetrate into the plastic resin, eliminate residual gases in the hot mixed material, and store the hot mixed material. It has the characteristics of fast cooling speed and uniform cooling, which can meet the requirements of plastic production technology; It is one of the essential equipment for plastic processing plants and has a wide range of applications in industries such as rubber, pharmaceuticals, and pigments.
Product details 1)The Blade is made of stainless steel, formed by dynamic and static balance refining.
2)Cap is double sealing, start by pneumatic, easy operation.
3)Cylinder is made of stainless steel, wall thickness up to 8 mm.
4)Discharge is in temperature auto control or time control.
5)Motor start and speed regulation is governed by the ABB inverter, to avert the excessive power that caused by high power motor start to impact on the electric network, so as to protect the electric network and to achieve a smooth speed control.
6)With direct & stable control type and analog display screen display, the staff can complete the set work for the different mixing material requirements within a few seconds, realizing the full automation of the manufacturing procedure, which greatly reduce labor intensity and production costs.
7)Direct & stable control type of the production line ends up the unsuitable discharge that the temperature is too high or too low, so as to ensure the good product quality and improve the production flexibility, security and reliability.
Product Parameters

Model	SRL-Z100/200	SRL-Z200/500	SRL-Z300/600	SRL-Z500/1000	SRL-Z800/1600
Total Volume	100/200 L	200/500 L	300/600 L	500/1000 L	800/1600 L
Effective Volume	65/130 L	150/320 L	225/380 L	375/650 L	600/1050 L
Motor Power	14/22/7.5 KW	30/42/11 KW	40/55/11 KW	47/67/15 KW	60/90/22 KW
Mixed Speed	650/1300/80 RPM	475/950/80 RPM	475/950/80 RPM	430/860/60 RPM	370/740/50 RPM
Mixing Time	8-12 min	8-12 min	8-12 min	8-12 min	8-15 min
Weight	2200 kg	3400 kg	3600 kg	4800 kg	6200 kg

After Sales Service
Delivery information:
1. Delivery: 30 days after ur order
2. Warrenty: 12 months
3. Payment: T/T 30% in advance, T/T 70% before delivery.
4. Packing: Standard export wooden case

Our Service
1. One year guarantee for whole machine.
2. 24 hours technical support.
3. Our engineers can provide installation & commission service overseas.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.
Detailed Photos

Our factory

Our Exhibition


Certifications Packaging & Shipping
FAQ Are you a trading company or factory? Can I have a factory visiting?
We are a factory that produces machines for customers directly. Yes, our production plant can be visited at any time. We are in Zhangjiagang, Jiangsu Province close to Shanghai and Wuxi. If you are near to us, the pick-up service is available.

How to build trust with Langbo We can send working videos showing the machine running perfectly in several countries for online communication. We will provide customer-focused and tailored technical suggestions.

For offline contact, you can visit our factory and talk about the machine face to face, you can find our competence in the field of plastic extrusion and tell our ability in machine building.

Is the shipping cost included in the quotation? Usually, our quotation contains FOB Shanghai as a shipment condition. This means the shipping cost between the delivery and destination ports will not be included in the quotation. The shipping cost fluctuates according to the delivery company and shipping date. Langbo can help customers to get the latest shipping price. Customers decide if we add the shipping cost to the quotation or choose a shipping agent by themselves.

What will happen after order confirmation confirmation of Configuration
Sign of Proforma invoice
30% of total price pre-payment for production starting
Test running in the house, customers on-site or video connecting
Confirmation of machine condition
70% of the total price for delivery preparation
Confirmation of Delivery date
Shipping to customer
On-site commissioning
Training in machine operation and maintenance
Confirmation of handover
One year guarantee
Whole lifecycle service and technical support

What is the Payment Method? T/T, D/P, Letter of credit, Cash transaction

How to guarantee the machine quality made by Langbo We provide one year guarantee and whole-lifecycle technical support for our product. During in-house test running, customers can check the machine on-site. Any point for optimization will be done immediately.

How can customers get the exact machine as they wish? Factory visiting before order
Product sample posting to Langbo for a better understanding of customer's expectations and configuration communication
On-site checking during test running

Do you have CE Certification? Yes. Both our extrusion machine and plastic recycling machine have CE Certification.

What is the delivery time between order confirmation and delivery? Usually 45 days. Depended on the certain project, the exact delivery time will be wrote on contract.

What are services for after-sale One-year quality guarantee.
Quick response for technical support
Problem analysis for production problems

What means one-year quality guarantee After the handover of the machine, Langbo provides free new parts for every non-man-made damage.

How to get the required area of the machine?
For a new plant, you can contact me. (whatsapp) After knowing your demand, I can make the detailed solution and layout of the machine line. Meanwhile, I will provide technical guidance of your installation and specification.
