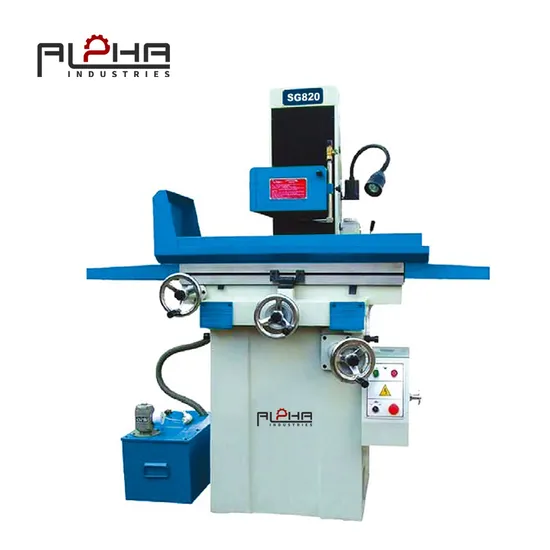

Industrial Surface Grinding Machine Sg820 with Advanced Features

Product Description

Product Parameters

Model No.	Unit	SG618	SG820
Max.worktable travel	mm	500x190x335	520×220×490
Worktable size(LxW)	mm	500x190	530×220
Working size(LxW)	mm	460x180	480×200
Distance between worktable surface to spindle center	mm	335	490
Max. loading capacity	kg	100	200
Cross feed	mm	0.02/Graduation 2.5/revolution	0.02/Graduation 2.5/revolution
Vertical feed	mm	0.01/Graduation 1.25/revolution	0.01/Graduation 1.25/revolution
Wheel size(DiaxWxBore)	mm	180x12x31.75	200×16×31.75
Spindle speed	rpm	2850	2850
Main motor	kw	1.1	1.1
Coolant pump	kw	0.24	0.24
Packing size	mm	1100x1020x1800	1350×1160×1960
N.W./G.W.	kg	700/800	800/900

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
