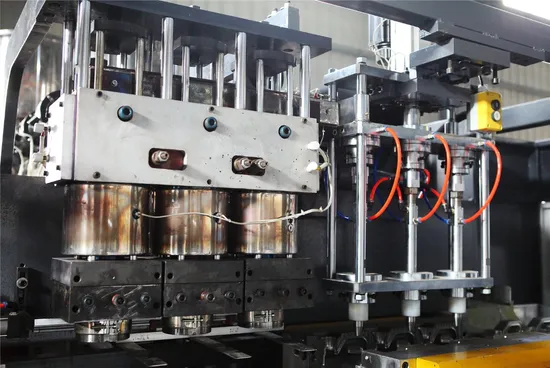

Full Automatic PE Bottle Stretch Blow Molding Machine
| US$15,000.00-20,000.00 | 1 Unit (MOQ) |
Basic Info.
Model NO.
SYJII-SF-80-3
Raw Material
PE
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
Avilable
Type of Shipping
Sea Transportation
Transaction Mode
Fob
Transport Package
Wooden Packing
Specification
4000MM*3500MM*2500MM
Trademark
SJ
Origin
China
Product Description
Yuhuan Shengjiang Plastic Machinery Factory is located in Qinggang economic development zone of Yuhuan, Taizhou city, Zhejiang province. It is an integrated company which includes research & development, production and sales for more than 30years. The Factory is professional on producing blow moulding machine, extrusion machine, and tube drawing machine, especially in the equipments of one-time blow moulding. All the equipments are widely used in the plastic packaging industries for beverage, washing, furniture, toys, automobile, medical, medicine and farm chemical. And the raw materials involved include (PVC, PETG,PE, PP, PS, PC, ABS,)etc.Based on the advanced equipments for production inspection, commissioning and installation.
| Code | SYJII-SF-80-3 |
| Max Product Volume | 2L |
| Output | 150pc/h |
| Machine Size | 4000mm*3500mm*2500mm |
| Weight | 6000KGS |
| Voltage&Frequency | Clients' Specified |
| screw Diameter | 80mm |
| L/D Ratio | 1:23 |
| Die Head Qty | 3pcs |
| Max Center Distance of Die Head | 180 |
| Extrusion Motor Power | 30KW |
| Total Power | 70KW |
| Average Energy Consumption | 20kw |
| Extruder heating power | 18kw |
| Number of hating zone | 4 |
| Oil pump drive power | 15KW |
| Max plasticizing capacity | 90-100kg/h |
| Platen Size | 420mm*400mm |
| Max mould size | 550mm*380mm*220mm |
| Clamping force | 110KN |
| Opening Stroke | 200mm-250mm |
| Moving Stroke | 600mm |
| Cooling water pressure | 0.3MPa |
| Water consumption | 30L/min |
| Air pressure | 0.6Mpa |
| Air consumption | 0.6centiare/min |
