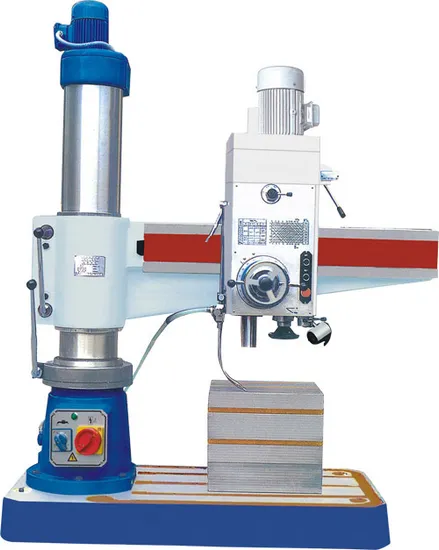

Radial Drilling and Mill Equipment Machine (Z3032X10)
| US$2,200.00-5,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
Z3032X10
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
50-100mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Z3032X10
Drilling Dia.32mm
Model
Z3032 10
Size
1730 750 2350
Color
Blue and White
Weight
1700
Column Dia.
240
Spindle Taper
Mt4
Motor Power
2.2kw
Transport Package
WOOD CASE
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
CHINA
HS Code
84592900
Production Capacity
200SETS/MONTH
Product Description
Radial Drilling Machine Z3032X101. The Radial Drilling Machine, It's construction designed elaborately, with pefect appearance and convenlent maintenance.
2. The headstock radial arm and colummns are clamped by manual clamping mechanisms.
3. It has feature of wide speed and feed range, compact operation key, reliable and enough rigidy.
4. The machine has a sample rigidity and power in drilling, counter boring, spot facing reaming, tapping, even boring when equiped with a special device. It is widely used in every department of machining medium and small sizes workpieces.
Standard accessories
* Box shape worktable
* Taper sleeve
* Tool releasing Wrench
* Drift
* Eyelet bolts
Special accessories
* Quick instead Chuck
* Tapping chuck
* Grease gun
| Model CODE NO. | Z3032X10 |
| Max.Drilling capacity (mm) | 32 |
| Distance spindle axis to column generating line (mm) | 200-1000 |
| Diameter of column (mm) | 240 |
| Spindle taper | MT4 |
| Spindle travel (mm) | 250 |
| Spindle speeds range (r/min) | 71-1800 |
| Spindle speeds series | 8 |
| Range of Spindle feeds (r/min) | 0.13-0.54 |
| Mpindle Spindle feeds | 4 |
| Max.Distance spindle nose to working surface of base (mm) | 264-1064 |
| Dimension of worktable (mm) | 400×450×400 |
| Dimension of base (mm) | 1500×740×160 |
| Overall Size (mm) | 1730×750×2350 |
| Power of Main motor (kW) | 2.2 |
| G.W/N.W (kg) | 1700/1400 |
| Packing dimension (cm) | 187×97×217 |
