Aeon CO2 Laser Cutting Engraving Machine for Acrylic Wood MDF
Basic Info.
Model NO.
Super10
Application
Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Pulse Laser
Applicable Material
Wood, Acrylic, Glass, Plastic, Leather
Structure Type
Gantry Type
Laser Classification
CO2 Laser Engraving Machine
Laser Technology
Laser Vapor Cutting
Safety Level
Class 1
Fastest in Its Class
Scan Speeds of up to 4200 mm/Second
All-in-One System
330W Built-in Exhaust Fan, Built-in 5000 Water Chi
Laser Tube
Glass Tube 80-150W &RF 30/60W
Super Clean Pack Design
Enclose The Linear Rails and Bearing Blocks
Dual Worktable
Blade+Honeycomb for Laser Cutting and Engraving
Working Area
1000mm*700mm
Multiple Interfaces
USB, Ethernet, and WiFi
Graphic Format Supported
Ai/Pdf/Sc/Dxf/Hpgl/Plt/Rd/Scpro2/Svg/Lbrn/BMP/JPG/
Software
Ruida or Lightburn
Transport Package
Wood Box
Trademark
Aeon Laser
Origin
China
HS Code
8456110090
Production Capacity
4800/Year
Product Description

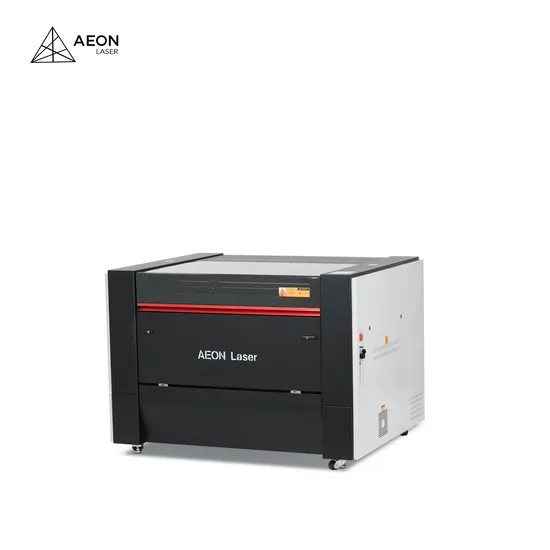

Product DescriptionAeon Laser Super Nova10 is a professional co2 laser engraving and cutting machine. The working area is 700*1000mm. Super Nova10 offers the Metal RF & Glass DC in one machine. Nova10 Super's engraving speed is as fast as MIRA series machines. Also can go 2000mm/sec, the acceleration speed is 5G, has the fastest speed in its class.The structure of the Nova10 super is very strong, which makes it more steady. The machine equipped with honeycomb and blade worktable and with model 5200 chiller, makes it possible to install 100W or even 130W laser tube. The Z-axis now increased to 200mm, so it can fit in higher products. The air assists system got pressure gauge and regulator to give the users option to add a more powerful compressor to cut thicker materials. The front and back material pass-through door makes it possible to cut long materials
FAQ
| 1 Q: Can the machine engrave and cut? |
| A. Yes, even on the same Job, you can do settings with different colors in the software and also can make holes. |
| 2. Q. Is the machine must work with computers? |
| A. Must connect with computer with USB cable when you change the settings of the machine. for the design files, you can transfer the file with a USB memory stick to the machine, Or can download it to the machine directly with a USB cable from the computer. |
| 3. Q. Can the machine be split so it can fit into my doors? |
| A. Such as laser engraving cutting machine model of WHL3050, WHL4060, which can the legs separate from the main body of the machine. |
| 4. Q. How long has the laser tube been working well? |
| A. Unfortunately we cannot confirm this. |
| it is about 4000+ hours for ordinary co2 laser tube 10,000+ hours for Reci brand co2 laser tube 6000+ hours for Pomelo Laser co2 laser tube |
| 5. Q. Can you explain what the differences are between the different watt laser tubes? |
| A: Usually, the power of the laser tube is decided by two parameters: |
| 1. The length of the laser tube( The longer the laser tube, is the more powerful). |
| 2. The Diameter of the Laser tube (The bigger the laser tube, the more powerful). |
| AND bigger watt laser tube can cut thicker materials, however, a bigger watt has a big laser beam, therefore, For engraving, It's. better to use small watt laser tube-like 60watt or 80watt.) |
| 6. Q.How do I know the laser tube is nearly used up? |
| A: The normal color of the laser beam is purple while working. When a laser tube is dying the color will become white |
