Student Locating 4K Video Camera
| US$100.00-300.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZC5-F20N
WDR
Yes
Focal
2.8mm - 14mm
Field of View
98° - 40°
White Balance
Auto, Indoor, Outdoor, One Push, Manual, Auto Trac
Max,Image Size
1920X1080
Video Compression
H.265, H.264
Protocol
HTTP / Rtsp / Rtmp / Onvif
Product Dimension
149mm X 76mm X 58mm
Weight
0.43kg
Video
Video
Composition
Power Amplifier
Communication
Wired
Transport Package
Neutral Packing
Specification
CE, FCC, RoHS etc
Trademark
Winsafe
Origin
Shenzhen
HS Code
8529102000
Production Capacity
50000PCS/Month
Packaging & Delivery
Package Size
35.00cm * 25.00cm * 15.00cm
Package Gross Weight
3.000kg
Product Description

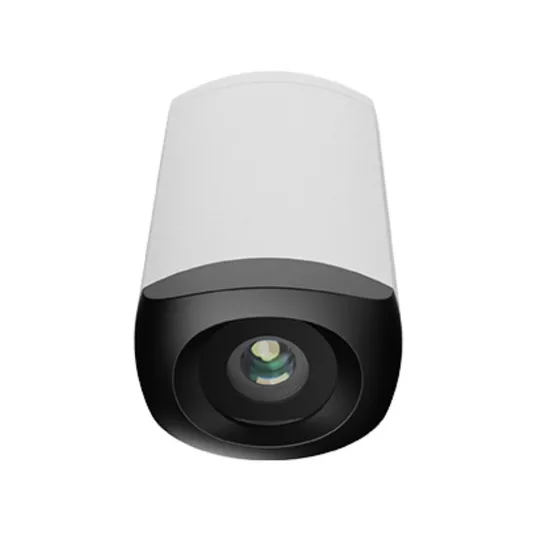

Student Locating 4K Video Camera
1/2.8" CMOS sensor, 8.46MP
121°HFOV, enable to frame more, with no distortion
Support EPTZ
Video resolution up to 4KP30, H.265/H.264 video compression
With OSD menu
Support stand and ceiling installation
POE supported
Support student locating.
| Model No. | ZC5-F20N | |
| Image Sensor | ||
| Image Sensor | 1/2.8" CMOS, 8.46MP | |
| Focal Length | f = 1.64mm | |
| Iris | F=2.4 | |
| HFOV | Horizontal:121° | |
| Shutter Speed | 1/60 - 1/10,000s | |
| AGC | Auto, Manual | |
| White Balance | Auto, Manual, One Push | |
| AE Control | Auto, Manual, Shutter Priority | |
| Interface | ||
| Network | RJ45(10m/100m), optional POE 1. Up to 4KP30 main steam: 1080P30/P25, 720P30/P25, 360P30/P25, sub steam: 4KP30P25, 1080P30/P25,720P30/P25, 360P30/P25 2. Image compression H.264/H.265 3. Support HTTP/TCP/UDP/RTSP/RTMP/ONVIF 4. Support AAC 5. Browser access supported | |
| USB2.0 | 1. Support UVC 2. Image compression H.264/H.265/MJPEG, support 4KP30/P25, 1080P30/P25, 720P30/P25, 360P30/P25. Platform OS: Windows 7/8/10, Mac OS, Android OS | |
| Audio Interface | 1 x LINE IN | |
| General | ||
| Control Protocol | VISCA | |
| Power | DC12V, <5W | |
| Address | 0 - 63 | |
| Operating Temperature | Temperature: 0°C - +40°C | |
| Storage Environment | Temperature: -20°C - +60°C | |
| Dimension(WxDxH) | 149mm x 76mm x 58mm | |
| Weight | 0.5kg | |
